LTM2892CY-S#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM2892CY-S#PBF - Digital Isolator, 6 Channel, 60 ns, 3 V, 5.5 V, BGA, 24 Pins

Download LTM2892CY-S#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

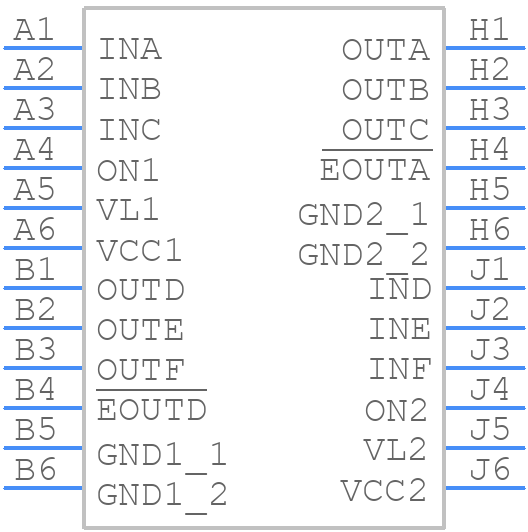

Symbol
LTM2892CY-S#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2892CY-S#PBF - Analog Devices PCB footprint - BGA - BGA - 24-Lead (9mm x 6.25mm x 2.91mm)
click to zoom
3D Models
LTM2892CY-S#PBF - Analog Devices - 3D model - BGA - 24-Lead (9mm x 6.25mm x 2.91mm)
click to zoom

LTM2892CY-S#PBF Details

  • Manufacturer Part Number:

    LTM2892CY-S#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1898

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • Interface Standard:

    SPI

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA24,6X9,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.11 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.25 mm

LTM2892CY-S#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2892CY-S#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure proper powering and decoupling of the LTM2892CY-S#PBF, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Additionally, use a 1uF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The LTM2892CY-S#PBF has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot common issues with the LTM2892CY-S#PBF, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output connections, and check for any signs of overheating or physical damage. Use an oscilloscope to measure the output voltage and check for oscillations. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • The LTM2892CY-S#PBF is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure the device meets the requirements of your specific application. Consult the datasheet and application notes, and consider performing additional testing and validation to ensure the device meets the necessary safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2892CY-S#PBF Overview

Use the download button to access the LTM2892CY-S#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
