LTM2892IY-S#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM2892IY-S#PBF - IC, DIG ISOLATOR UMODULE, 6CH SPI, 24BGA

Download LTM2892IY-S#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

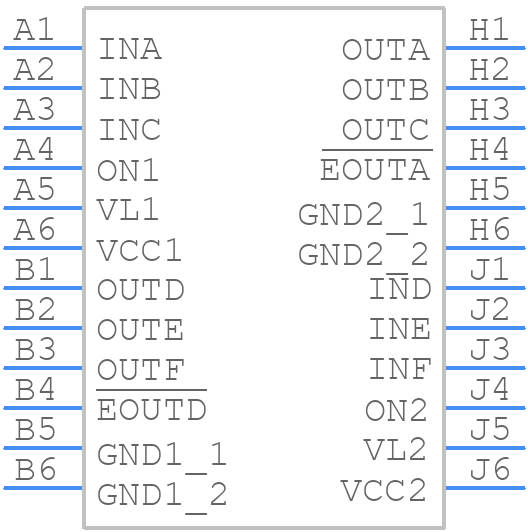

LTM2892IY-S#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2892IY-S#PBF - Analog Devices PCB footprint - BGA - BGA - 24-Lead (9mm x 6.25mm x 2.91mm)
click to zoom
3D Models
LTM2892IY-S#PBF - Analog Devices - 3D model - BGA - 24-Lead (9mm x 6.25mm x 2.91mm)
click to zoom

LTM2892IY-S#PBF Details

  • Manufacturer Part Number:

    LTM2892IY-S#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1898

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • Interface Standard:

    SPI

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA24,6X9,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.11 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.25 mm

LTM2892IY-S#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2892IY-S#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • To ensure accurate temperature measurement with the LTM2892IY-S#PBF, it's essential to follow proper thermal design practices, such as using a thermally conductive material for the PCB, keeping the device away from heat sources, and using a thermocouple or other temperature sensor with a high accuracy rating. Additionally, calibration of the device may be necessary to account for any offsets or non-linearities in the temperature measurement.
  • The maximum cable length for the digital interface of the LTM2892IY-S#PBF depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable communication. If a longer cable length is required, it's recommended to use a shielded cable and to follow proper termination and impedance matching techniques.
  • To handle EMI and RFI in a design using the LTM2892IY-S#PBF, it's recommended to follow proper shielding and grounding techniques, such as using a metal enclosure, shielding the cables, and connecting the device to a solid ground plane. Additionally, it's recommended to use EMI filters or ferrite beads on the power supply lines and to follow proper layout practices to minimize radiation and susceptibility to external interference.
  • The recommended power supply decoupling for the LTM2892IY-S#PBF involves using a combination of ceramic and electrolytic capacitors to filter out high-frequency noise and provide a stable power supply. A typical decoupling scheme would include a 10uF ceramic capacitor in parallel with a 10uF electrolytic capacitor, placed as close as possible to the device's power supply pins.
