LTM2894CY#PBF - Analog Devices

Description: USB Transceiver 1TR 12Mbps 24-Pin BGA Tray

Download LTM2894CY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

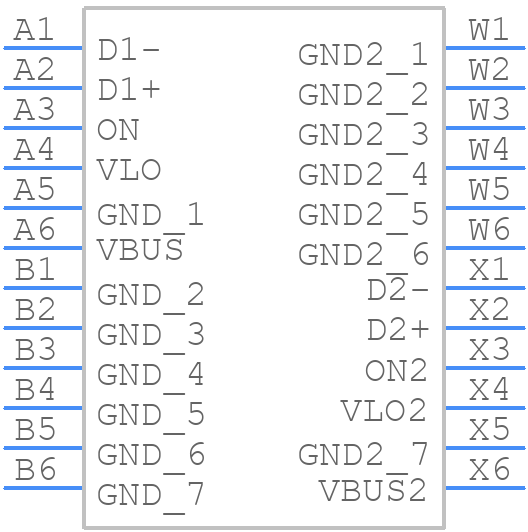

LTM2894CY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2894CY#PBF - Analog Devices PCB footprint - Other - Other - LTM2892IY-I#PBF+
click to zoom
3D Models
LTM2894CY#PBF - Analog Devices - 3D model - Other - LTM2892IY-I#PBF+
click to zoom

LTM2894CY#PBF Details

  • Manufacturer Part Number:

    LTM2894CY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1991

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA24,21X6,39

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    300 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.31 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    300 ns

  • Width:

    6.25 mm

LTM2894CY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2894CY involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure the accuracy of the temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize the thermal gradient across the device. Additionally, the device should be mounted on a thermally conductive material, and the temperature sensor should be placed close to the device.
  • The maximum cable length supported by the LTM2894CY for remote sensing depends on the cable type, capacitance, and the frequency of the signal. As a general guideline, the cable length should be limited to 10 meters or less to ensure reliable operation. However, it's recommended to consult the datasheet and application notes for specific guidance on cable selection and layout.
  • Yes, the LTM2894CY is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the device should be operated within its specified temperature range to ensure reliable operation.
  • To troubleshoot issues with the LTM2894CY, start by verifying the power supply voltage, checking the device's configuration and settings, and ensuring that the communication protocol is correct. Additionally, use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Consult the datasheet, application notes, and technical support resources for further guidance.
