LTM4601AHVEY#PBF - Analog Devices

Description: 12A, 28VIN DC/DC µModule Regualtor with PLL, Output Tracking and Margining

Download LTM4601AHVEY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4601AHVEY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

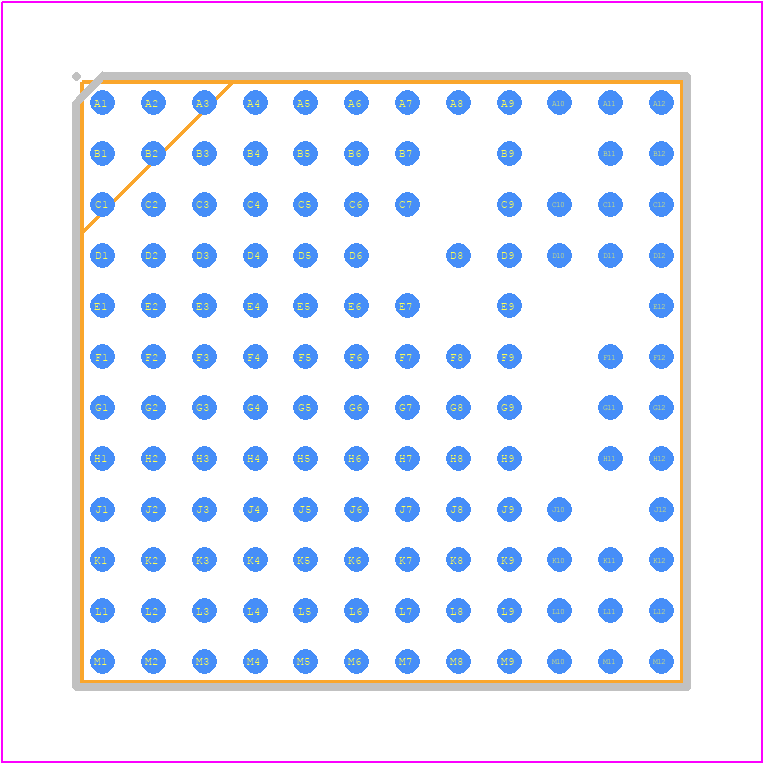

LTM4601AHVEY#PBF - Analog Devices PCB footprint - BGA - BGA - 133-Lead (15mm × 15mm × 3.42mm)
click to zoom
3D Models
LTM4601AHVEY#PBF - Analog Devices - 3D model - BGA - 133-Lead (15mm × 15mm × 3.42mm)
click to zoom

LTM4601AHVEY#PBF Details

  • Manufacturer Part Number:

    LTM4601AHVEY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    15 X 15 MM, 3.42 MM HEIGHT, ROHS COMPLIANT, MS-028, BGA-133

  • Pin Count:

    133

  • Manufacturer Package Code:

    05-08-1877

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B133

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    133

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA133,12X12,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LTM4601AHVEY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTM4601AHVEY#PBF near a thermal pad or heat sink, using thick copper traces for power connections, and keeping the component away from other heat sources. A 4-layer PCB with a solid ground plane is also recommended.
  • The selection of input and output capacitors depends on the specific requirements of your application. For the LTM4601AHVEY#PBF, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor, while a 10uF to 47uF capacitor with low ESR is recommended for the output capacitor.
  • The LTM4601AHVEY#PBF is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at high temperatures.
  • The LTM4601AHVEY#PBF has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. For short-circuit protection, a fuse or a current-limiting resistor can be added in series with the output.
  • The recommended startup sequence for the LTM4601AHVEY#PBF is to first apply the input voltage, then the enable signal, and finally the output voltage. This sequence helps to prevent unwanted startup behavior and ensures reliable operation.
