LTM4601HVIY#PBF - Analog Devices

Description: 12A 28VIN DC/DC µModule (Power Module) Regulator with PLL, Output Tracking and Margining

Download LTM4601HVIY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4601HVIY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

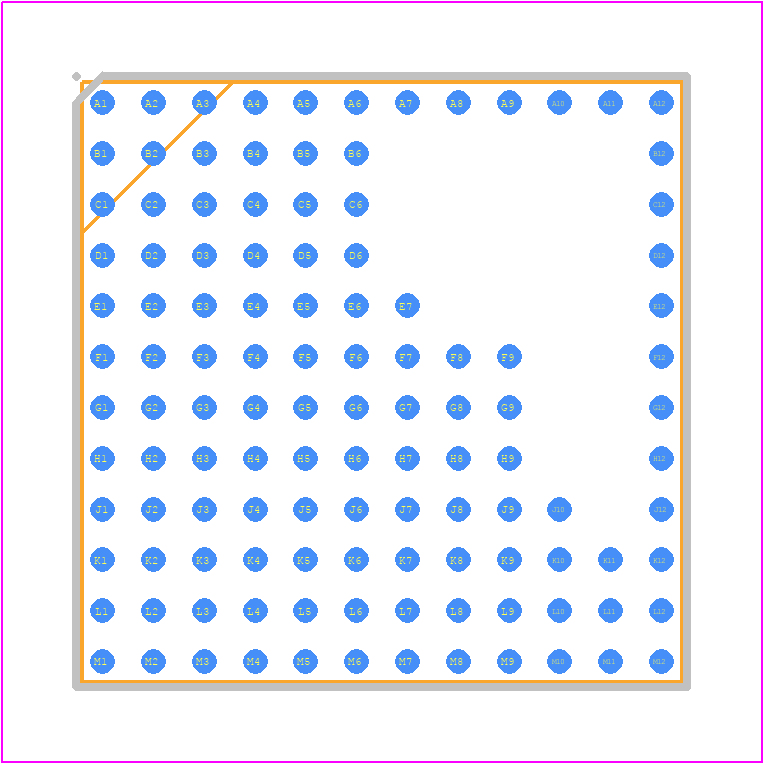

LTM4601HVIY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 118-Lead (15mm × 15mm × 3.42mm)
click to zoom
3D Models
LTM4601HVIY#PBF - Analog Devices - 3D model - BGA - BGA Package 118-Lead (15mm × 15mm × 3.42mm)
click to zoom

LTM4601HVIY#PBF Details

  • Manufacturer Part Number:

    LTM4601HVIY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    15 X 15 MM, 3.42 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MS-028, BGA-118

  • Pin Count:

    118

  • Manufacturer Package Code:

    05-08-1903

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-B118

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    118

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

LTM4601HVIY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTM4601HVIY#PBF near a thermal pad or a heat sink, and ensuring that the thermal vias are connected to a solid copper plane on the bottom layer of the PCB. Additionally, keeping the component placement and routing symmetrical can help to reduce thermal gradients.
  • The selection of input and output capacitors depends on the specific requirements of your application, such as the input voltage range, output voltage, and ripple current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
  • The LTM4601HVIY#PBF can operate in ambient temperatures up to 85°C, but the maximum junction temperature (TJ) should not exceed 125°C. It's essential to ensure that the device is properly cooled to prevent overheating, especially in high-power applications.
  • The LTM4601HVIY#PBF is a commercial-grade device, but Analog Devices Inc offers a range of high-reliability and aerospace-grade devices that meet specific industry standards, such as MIL-PRF-38535 or ESCC. It's recommended to consult with Analog Devices Inc or a qualified distributor to determine the suitability of the LTM4601HVIY#PBF or alternative devices for high-reliability or aerospace applications.
  • Troubleshooting common issues with the LTM4601HVIY#PBF involves a systematic approach, including checking the input voltage, output voltage, and current, as well as the PCB layout and component selection. It's also recommended to consult the datasheet, application notes, and Analog Devices Inc's technical support resources for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM4601HVIY#PBF Overview

Use the download button to access the LTM4601HVIY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM46, or try a keyword search, such as Switching Regulator or Controllers
