LTM4662MPY#PBF - Analog Devices

Description: Switching Voltage Regulators 2x 15A or 1x 30A DC/DC ?Module Reg

Download LTM4662MPY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM4662MPY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

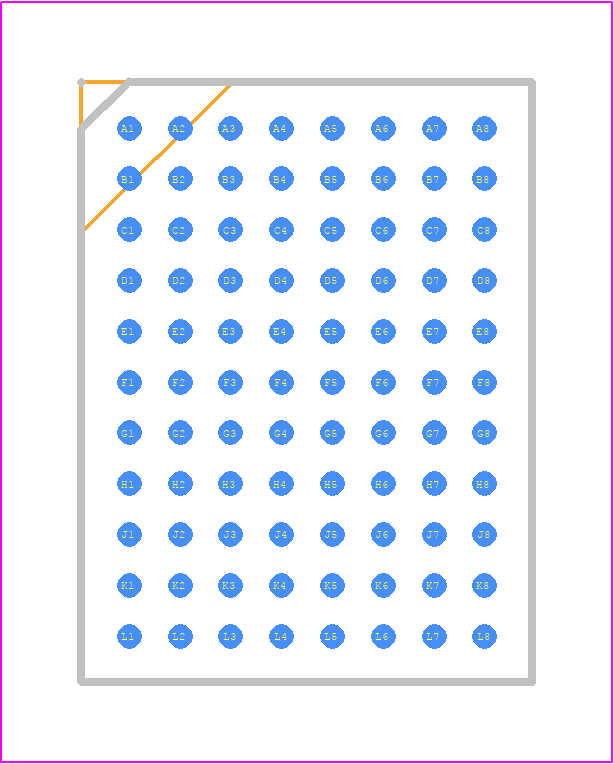

LTM4662MPY#PBF - Analog Devices PCB footprint - BGA - BGA - e 88-Lead (15mm × 11.25mm × 5.74mm-
click to zoom
3D Models
LTM4662MPY#PBF - Analog Devices - 3D model - BGA - e 88-Lead (15mm × 11.25mm × 5.74mm-
click to zoom

LTM4662MPY#PBF Details

  • Manufacturer Part Number:

    LTM4662MPY#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CHIP SCALE BGA

  • Package Description:

    BGA-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CHIP SCALE BGA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B88

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    30 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA88,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    6.26 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.25 mm

LTM4662MPY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTM4662MPY#PBF near a thermal pad or a heat sink, and ensuring that the thermal vias are connected to a solid copper plane on the bottom layer of the PCB. Additionally, keeping the component placement and routing symmetrical can help to reduce thermal gradients.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design with a secure component attachment, and to follow proper soldering and assembly techniques. Additionally, using a conformal coating or potting compound can help to protect the device from vibration-induced damage.
  • Operating the LTM4662MPY#PBF beyond its specified temperature range can lead to reduced performance, decreased reliability, and potentially even device failure. It is recommended to ensure that the device operates within its specified temperature range to maintain optimal performance and reliability.
  • To troubleshoot issues with the LTM4662MPY#PBF, it is recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Check for proper component selection, PCB layout, and soldering quality. Use oscilloscopes and other diagnostic tools to measure voltage and current waveforms, and consult with Analog Devices' technical support resources if necessary.
  • The LTM4662MPY#PBF is a high-frequency device that can be susceptible to EMI and RFI. To minimize these effects, it is recommended to use proper shielding, filtering, and grounding techniques, and to follow good PCB design practices. Additionally, using a spread-spectrum clock or other EMI-reducing techniques can help to minimize the device's electromagnetic emissions.
