LTM4693IV#PBF - Analog Devices

Description: Ultrathin Low VIN, 2A Buck-Boost μModule Regulator

Download LTM4693IV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

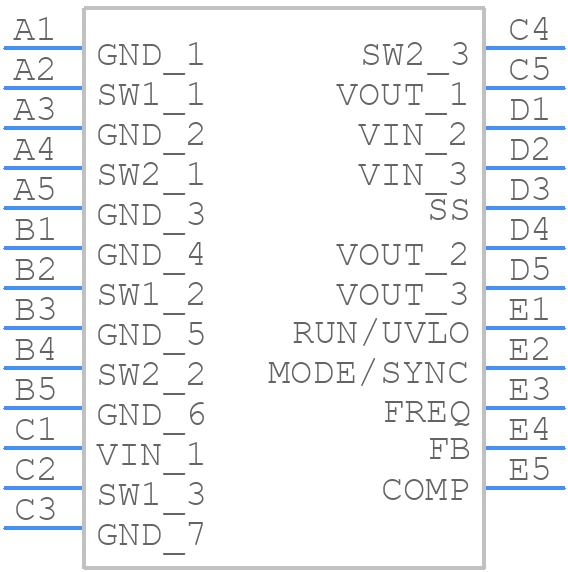

LTM4693IV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM4693IV#PBF - Analog Devices PCB footprint - Other - Other - LGA Package 25-Lead (3.5mm × 4mm × 1.25mm)_2025-2
click to zoom
3D Models
LTM4693IV#PBF - Analog Devices - 3D model - Other - LGA Package 25-Lead (3.5mm × 4mm × 1.25mm)_2025-2
click to zoom

LTM4693IV#PBF Details

  • Manufacturer Part Number:

    LTM4693IV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    05-08-7014

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    AVERAGE CURRENT

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    R-XXMA-N25

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.35 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    3.5 mm

LTM4693IV#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pads away from high-current paths and ensure good airflow around the device.
  • Use the datasheet's recommended output filter components and layout guidelines. Ensure the output capacitors have low ESR and are placed close to the output pins. Add a small ceramic capacitor in parallel with the main output capacitor to reduce high-frequency noise.
  • The device can withstand input voltage transients up to 20% above the maximum recommended input voltage (Vin) for a duration of 100ms. However, it's recommended to use input voltage transient protection circuits to ensure reliable operation.
  • Use a soft-start circuit to limit the inrush current during start-up. Ensure the input voltage rises slowly (typically 10ms to 100ms) to prevent excessive inrush current. For shutdown, use a controlled shutdown sequence to prevent voltage spikes and ensure a clean shutdown.
  • A thermal interface material with a thermal conductivity of at least 1 W/m-K is recommended. Examples include thermal tapes, thermal greases, or thermal pads with a thermal conductivity of 1 W/m-K or higher.
