LTM4703EY#PBF - Analog Devices

Description: 16VIN, 12A Ultralow Noise Silent Switcher 3 μModule Regulator

Download LTM4703EY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

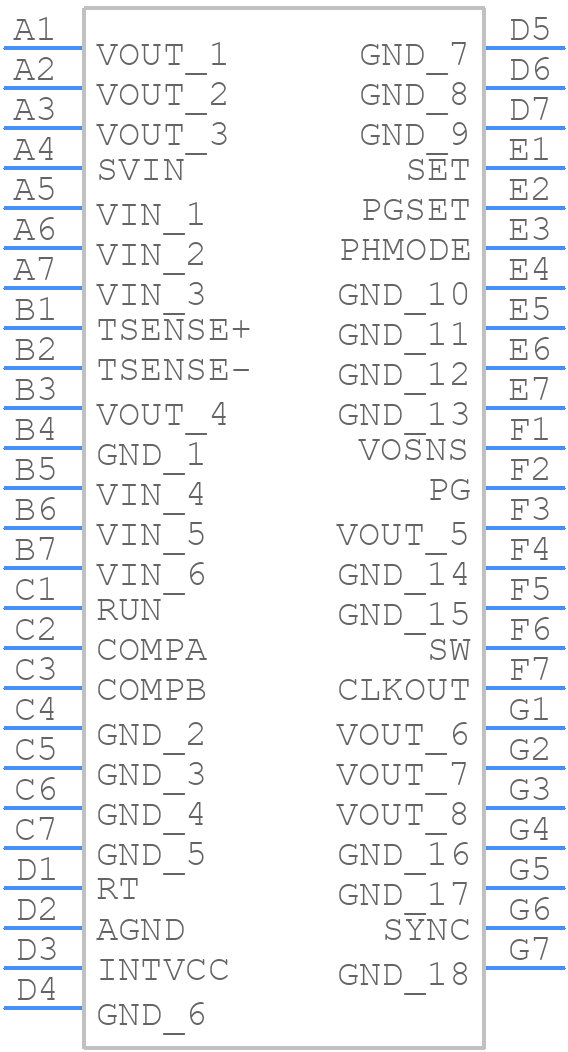

LTM4703EY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM4703EY#PBF - Analog Devices PCB footprint - BGA - BGA - 49-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 6.25mm × 6.25mm × 5.07mm-1
click to zoom
3D Models
LTM4703EY#PBF - Analog Devices - 3D model - BGA - 49-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 6.25mm × 6.25mm × 5.07mm-1
click to zoom

LTM4703EY#PBF Details

  • Manufacturer Part Number:

    LTM4703EY#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Moisture Sensitivity Level:

    4

  • Peak Reflow Temperature (Cel):

    250

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM4703EY#PBF Overview

Use the download button to access the LTM4703EY#PBF schematic symbol, PCB footprint, and 3D model.
