LTM8025MPY - Analog Devices

Description: Complete Step-Down Switch Mode Power Supply n Wide Input Voltage Range: 3.6V to 36V n Up to 3A Output Current n Parallelable for Increased Output Current n 0.8V to 24V Output Voltage n Selectable Switching Frequency: 200kHz to 2.4MHz n Current Mode Control n SnPb or RoHS Compliant Finish n Programmable Soft-Start n 9mm × 15mm × 4.32mm LGA and 9mm × 15mm × 4.92mm BGA Packages

Download LTM8025MPY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8025MPY - Analog Devices - PCB symbol
click to zoom
PCB Footprints

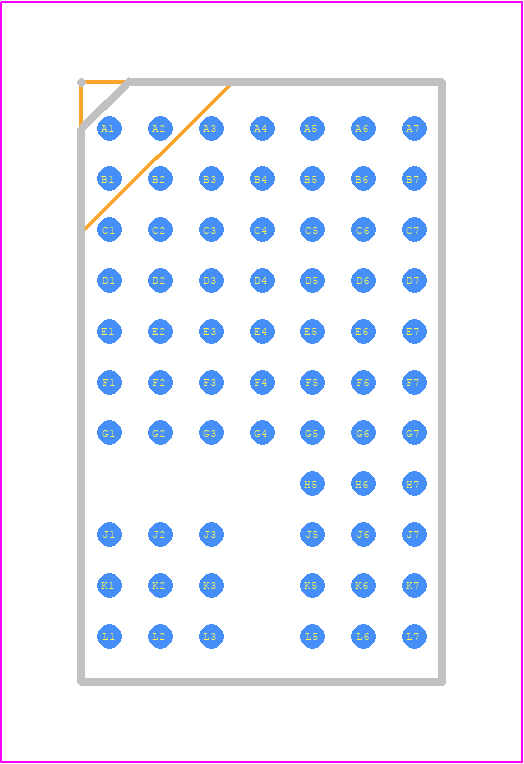

LTM8025MPY - Analog Devices PCB footprint - BGA - BGA - BGA Package 70-Lead (15mm × 9mm × 4.92mm) (Reference LTC DWG# 05-08-1918 Rev A)
click to zoom
3D Models
LTM8025MPY - Analog Devices - 3D model - BGA - BGA Package 70-Lead (15mm × 9mm × 4.92mm) (Reference LTC DWG# 05-08-1918 Rev A)
click to zoom

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM8025MPY Overview

Use the download button to access the LTM8025MPY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM80, or try a keyword search, such as Switching Regulator or Controllers
