LTM8046EY#PBF - Analog Devices

LTM8046EY#PBF Details

• Manufacturer Part Number:

  LTM8046EY#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

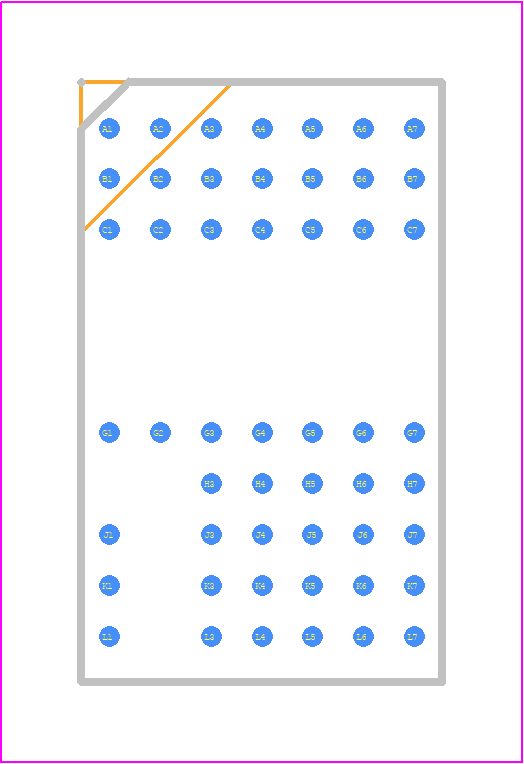

• Package Description:

  9 X 15 MM, 4.92 MM HEIGHT, ROHS COMPLIANT, MS-028, BGA-51

• Pin Count:

  51

• Manufacturer Package Code:

  05-08-1889

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  OUTPUT VOLTAGE RANGE FROM 1.8 VOLT TO 12 VOLT

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  VARIABLE FREQUENCY

• Input Voltage-Max:

  31 V

• Input Voltage-Min:

  3.1 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PBGA-B51

• JESD-609 Code:

  e1

• Length:

  15 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  51

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.7 A

• Output Voltage-Max:

  12 V

• Output Voltage-Min:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  5.12 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Technology:

  HYBRID

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  9 mm
