LTM8049EY#PBF - Analog Devices

LTM8049EY#PBF Details

• Manufacturer Part Number:

  LTM8049EY#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

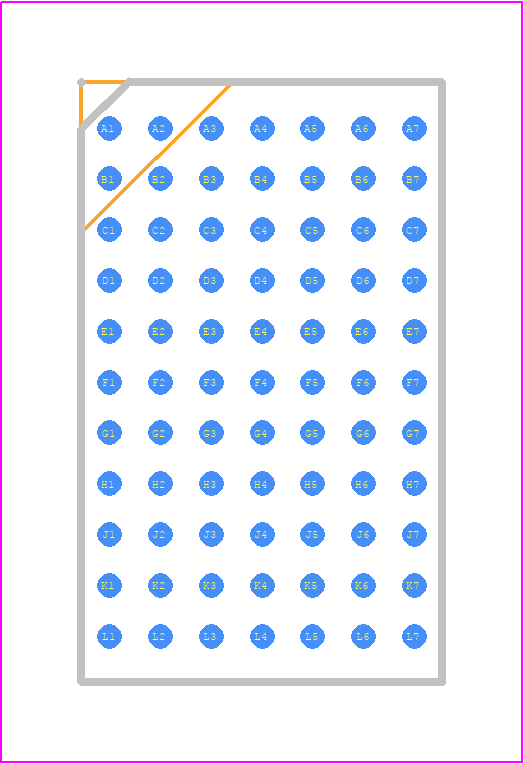

• Package Description:

  BGA-77

• Pin Count:

  77

• Manufacturer Package Code:

  05-08-1964

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  ADJUSTBLE OUTPUT MODE FROM 2.5 V AND 24 V AND ADJUSTBLE OUTPUT MODE FROM -2.5 V AND -24 V

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  2.6 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PBGA-B77

• Length:

  15 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  77

• Operating Temperature-Max:

  125 °C

• Output Voltage-Max:

  24 V

• Output Voltage-Min:

  2.5 V

• Output Voltage-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.62 mm

• Surface Mount:

  YES

• Switcher Configuration:

  PHASE-SHIFT

• Switching Frequency-Max:

  2900 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  9 mm
