LTM8060EY#PBF - Analog Devices

Description: Quad 40VIN, Silent Switcher μModule Regulator with Configurable 3A Output Array

Download LTM8060EY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8060EY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

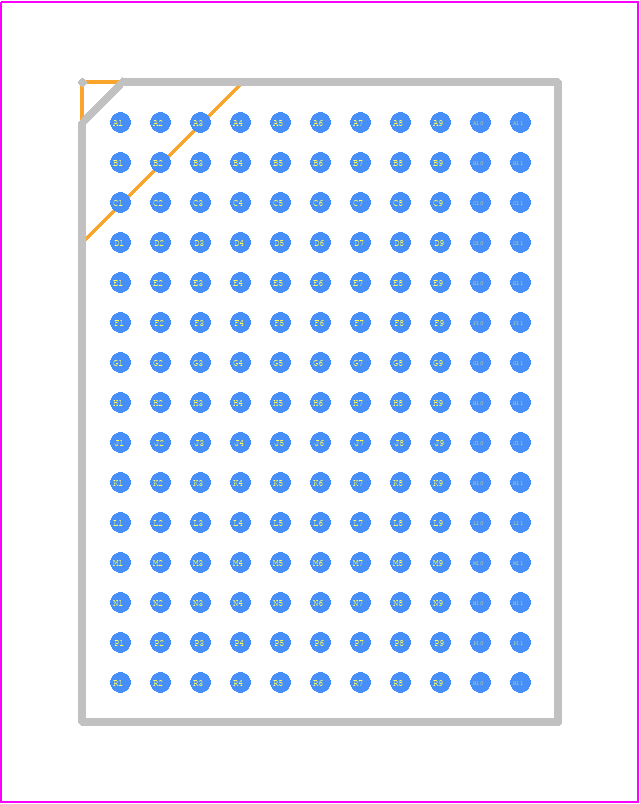

LTM8060EY#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 165-Lead (16mm × 11.9mm × 3.32mm)
click to zoom
3D Models
LTM8060EY#PBF - Analog Devices - 3D model - BGA - BGA Package 165-Lead (16mm × 11.9mm × 3.32mm)
click to zoom

LTM8060EY#PBF Details

  • Manufacturer Part Number:

    LTM8060EY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-165

  • Pin Count:

    165

  • Manufacturer Package Code:

    05-08-1605

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBGA-B165

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    165

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    8 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA165,11X15,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.51 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.9 mm

LTM8060EY#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM8060EY is 80V, but it's recommended to operate within the specified input voltage range of 6V to 60V for optimal performance.
  • To ensure stability, follow the recommended layout guidelines, use a minimum output capacitance of 10uF, and add a 10nF capacitor between the VIN and PGND pins. Additionally, ensure that the input voltage is within the specified range and the output current is within the maximum rating.
  • The recommended PCB layout for the LTM8060EY involves placing the input capacitors close to the VIN pin, keeping the high-current paths short and wide, and using a solid ground plane to reduce noise and improve thermal performance.
  • The LTM8060EY is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The LTM8060EY has built-in overcurrent protection (OCP) and overvoltage protection (OVP). However, additional external protection components, such as fuses or TVS diodes, can be added to enhance protection against extreme fault conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM8060EY#PBF Overview

Use the download button to access the LTM8060EY#PBF schematic symbol, PCB footprint, and 3D model.
