LTM8062AEV#PBF - Analog Devices

Description: Linear Technology LTM8062AEV#PBF, Lead-Acid, LiFePO4, Lithium-Ion, Lithium-Polymer, Battery Charger 77-Pin, LGA

Download LTM8062AEV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8062AEV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

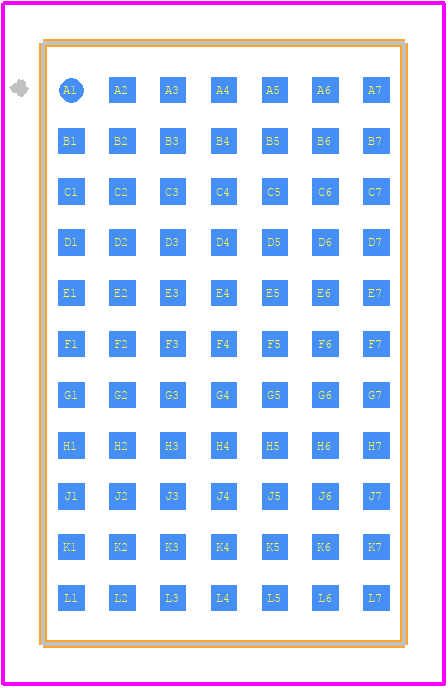

LTM8062AEV#PBF - Analog Devices PCB footprint - Other - Other - 77-Lead (15mm × 9mm × 4.32mm) (Reference LTC DWG # 05-08-1856 Rev A)
click to zoom
3D Models
LTM8062AEV#PBF - Analog Devices - 3D model - Other - 77-Lead (15mm × 9mm × 4.32mm) (Reference LTC DWG # 05-08-1856 Rev A)
click to zoom

LTM8062AEV#PBF Details

  • Manufacturer Part Number:

    LTM8062AEV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-77

  • Pin Count:

    77

  • Manufacturer Package Code:

    05-08-1856

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-N77

  • JESD-609 Code:

    e3

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    77

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA77,7X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.42 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4.95 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTM8062AEV#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTM8062AEV is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure the stability of the LTM8062AEV output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor.
  • The LTM8062AEV can deliver up to 2A of output current, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
  • The LTM8062AEV output voltage can be configured using the FB (feedback) pin and the VOUT pin. The FB pin is connected to a resistive divider network that sets the output voltage, and the VOUT pin is connected to the output capacitor.
  • The thermal shutdown temperature of the LTM8062AEV is typically around 150°C, but it's recommended to operate the device within the specified operating temperature range of -40°C to 125°C for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM8062AEV#PBF Overview

Use the download button to access the LTM8062AEV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM80, or try a keyword search, such as Power Management Circuits
