LTM8062EV#PBF - Analog Devices

Description: Battery Charger 2A 32Vin Tracking LGA77 Linear Technology LTM8062EV#PBF, Battery Charge Controller IC, 2000mA, 77-Pin LGA

Download LTM8062EV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM8062EV#PBF - Analog Devices - PCB symbol
click to zoom

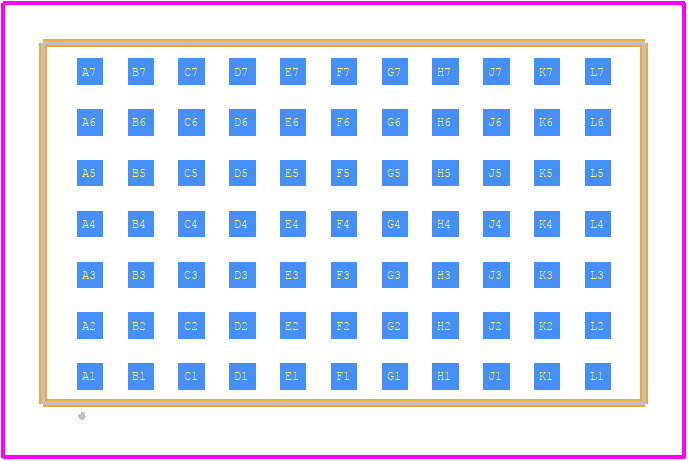

PCB Footprints
LTM8062EV#PBF - Analog Devices PCB footprint - Other - Other - LTM8062EV#PBF-1
click to zoom
3D Models
LTM8062EV#PBF - Analog Devices - 3D model - Other - LTM8062EV#PBF-1
click to zoom

LTM8062EV#PBF Details

  • Manufacturer Part Number:

    LTM8062EV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-77

  • Pin Count:

    77

  • Manufacturer Package Code:

    05-08-1856

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-N77

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    77

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA77,7X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.42 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4.95 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTM8062EV#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the thermal path short and using a thermal interface material (TIM) between the device and the heat sink can help to improve thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, use a heat sink with a high thermal conductivity, and ensure good airflow around the device. Additionally, derating the output current and voltage can help to reduce the device's power dissipation and improve reliability.
  • Key considerations for EMI filtering and noise reduction include using a pi-filter (C-L-C) or a common-mode choke at the input, placing the input capacitors close to the device, and using a shielded inductor. Additionally, using a low-ESR output capacitor and placing it close to the device can help to reduce output noise.
  • To optimize the device for low-power operation, it is recommended to use a low-input voltage, reduce the output voltage, and minimize the output current. Additionally, using a high-efficiency inductor and optimizing the PCB layout to reduce parasitic losses can help to improve efficiency.
  • Recommended test and measurement techniques for characterizing the device's performance include using a high-bandwidth oscilloscope to measure output voltage and current, using a spectrum analyzer to measure output noise, and using a thermal camera to measure device temperature. Additionally, using a load transient response test to evaluate the device's transient response can help to ensure reliable operation.
