LTM9007CY-14#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM9007CY-14#PBF - ADC, 8CH, 1.8V, 14BIT, 40MSPS, 140BGA

Download LTM9007CY-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM9007CY-14#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

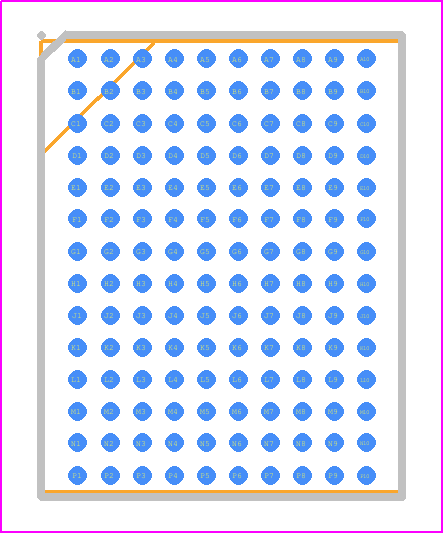

LTM9007CY-14#PBF - Analog Devices PCB footprint - BGA - BGA - BGA Package 140-Lead (11.25mm × 9.00mm × 2.72mm)
click to zoom
3D Models
LTM9007CY-14#PBF - Analog Devices - 3D model - BGA - BGA Package 140-Lead (11.25mm × 9.00mm × 2.72mm)
click to zoom

LTM9007CY-14#PBF Details

  • Manufacturer Part Number:

    LTM9007CY-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    11.25 X 9 MM, 2.72 MM HEIGHT, LEAD FREE, MS-028, BGA-140

  • Pin Count:

    140

  • Manufacturer Package Code:

    05-08-1849

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PBGA-B140

  • JESD-609 Code:

    e1

  • Length:

    11.25 mm

  • Linearity Error-Max (EL):

    0.0168%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    140

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA140,10X14,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.87 mm

  • Supply Current-Max:

    275 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9 mm

LTM9007CY-14#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM9007CY-14 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces carrying high-frequency signals.
  • To ensure proper powering and decoupling of the LTM9007CY-14, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device's power pins.
  • The maximum clock frequency that can be used with the LTM9007CY-14 is 100MHz, but it's recommended to use a clock frequency of 50MHz or lower to ensure optimal performance and minimize jitter.
  • To configure the LTM9007CY-14 for optimal dynamic range and SNR, set the gain to the minimum required value, use a high-quality analog input signal, and ensure that the analog input signal is properly terminated and filtered to minimize noise and distortion.
  • The recommended operating temperature range for the LTM9007CY-14 is -40°C to 85°C, but it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
