LTM9011IY-14#PBF - Analog Devices

Description: Analog to Digital Converters - ADC 14-Bit, 125Msps Octal uModule ADC

Download LTM9011IY-14#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTM9011IY-14#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

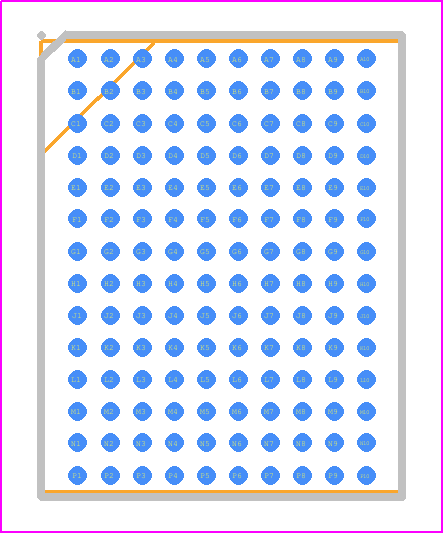

LTM9011IY-14#PBF - Analog Devices PCB footprint - BGA - BGA - 140-Lead (11.25mm × 9.00mm × 2.72mm)
click to zoom
3D Models
LTM9011IY-14#PBF - Analog Devices - 3D model - BGA - 140-Lead (11.25mm × 9.00mm × 2.72mm)
click to zoom

LTM9011IY-14#PBF Details

  • Manufacturer Part Number:

    LTM9011IY-14#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-140

  • Pin Count:

    140

  • Manufacturer Package Code:

    05-08-1849

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PBGA-B140

  • JESD-609 Code:

    e1

  • Length:

    11.25 mm

  • Linearity Error-Max (EL):

    0.025%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    140

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA140,10X14,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.87 mm

  • Supply Current-Max:

    632 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

LTM9011IY-14#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM9011IY-14#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize ringing and oscillations.
  • The LTM9011IY-14#PBF is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C.
  • Yes, the LTM9011IY-14#PBF is suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LTM9011IY-14#PBF, start by verifying the power supply voltage, input and output signals, and PCB layout. Use an oscilloscope to check for oscillations, ringing, or other anomalies. Also, ensure that the device is properly decoupled and that the input and output capacitors are suitable for the application.
