Description:Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 2 Character Common Anode 2.1V 20mA 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) 18-DIP (0.600", 15.24mm)
COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
13.8 mm
Forward Current-Max:
0.025 A
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-35 °C
Optoelectronic Device Type:
14 SEG ALPHANUMERIC LED DISPLAY
LTP-3786JD-03 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or thermal management system.
The critical parameters to monitor during operation to prevent overheating include the junction temperature (TJ), output current, and input voltage. It's also essential to monitor the device's thermal resistance (RθJA) and ensure it's within the recommended specifications.
The LTP-3786JD-03 is a commercial-grade device, and its reliability and quality may not meet the requirements of high-reliability or automotive applications. It's recommended to consult with the manufacturer or a qualified reliability engineer to determine the device's suitability for such applications.
The recommended soldering and rework conditions for the LTP-3786JD-03 involve using a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 3-5 seconds. It's also essential to follow the manufacturer's recommended rework procedures to avoid damaging the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTP-3786JD-03 Overview

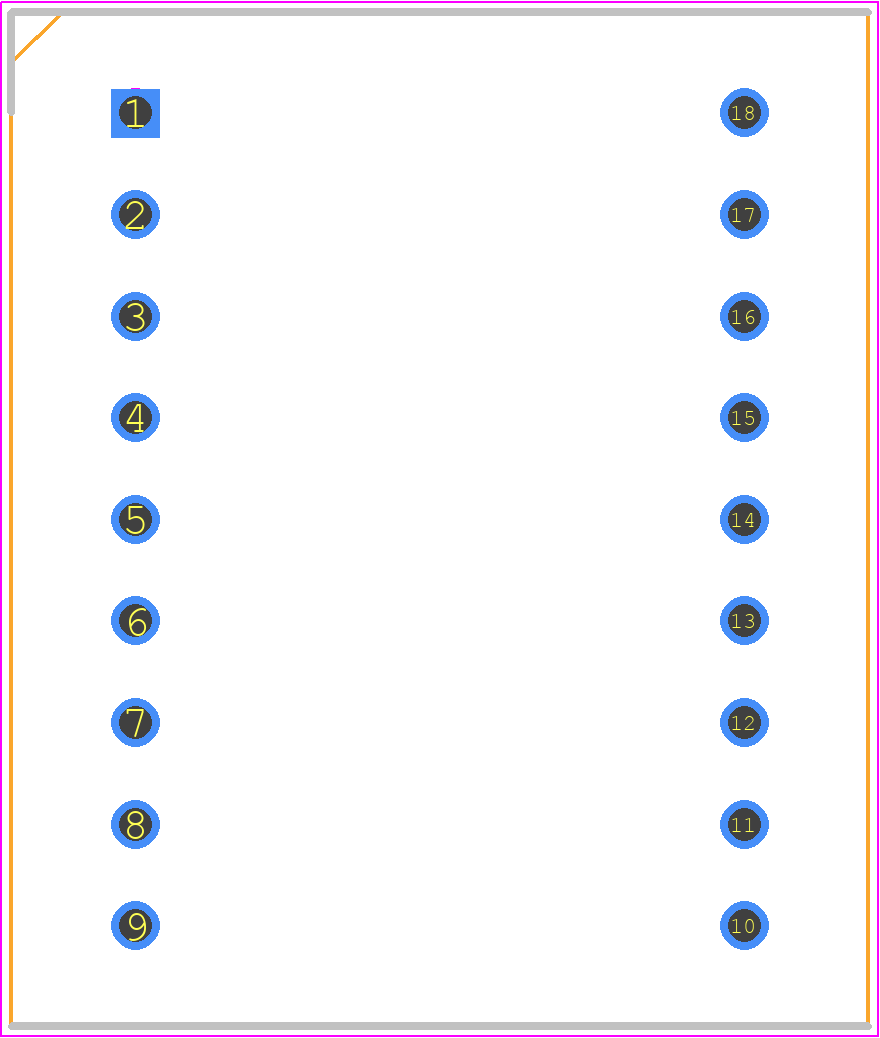

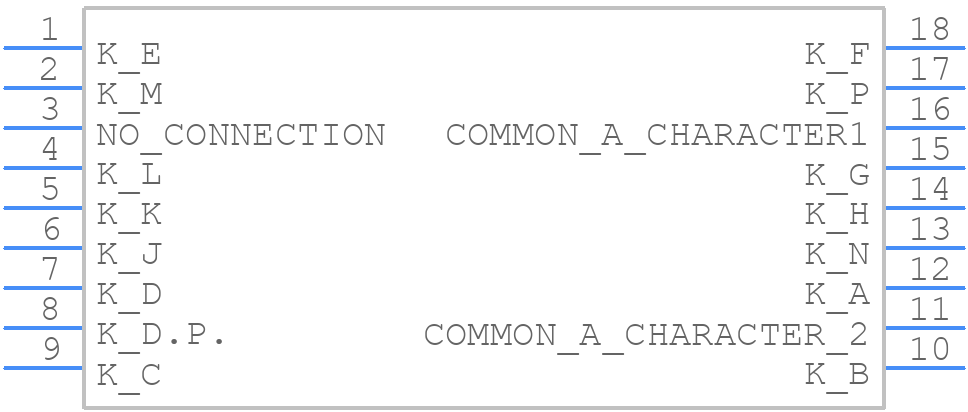

Use the download button to access the LTP-3786JD-03 schematic symbol, PCB footprint, and 3D model.
