A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1 oz copper thickness and a 1-inch square copper pour on the bottom layer for heat dissipation.
Implement a heat sink with a thermal interface material, ensure good airflow, and consider using a thermal shield or heat spreader. Also, derate the device's power dissipation according to the ambient temperature.
Handle the device by the body, avoiding touching the leads or pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions.
Yes, but ensure the device is operated within its safe operating area (SOA) and follow the recommended switching frequency, duty cycle, and output filtering to minimize electromagnetic interference (EMI).
Check for proper PCB layout, thermal management, and component selection. Verify the input voltage, current, and power dissipation are within the recommended specifications. Use a thermal camera or thermometer to monitor the device temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTP-747KR Overview

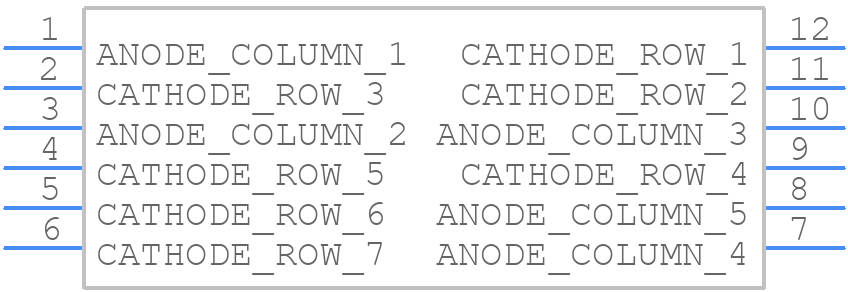

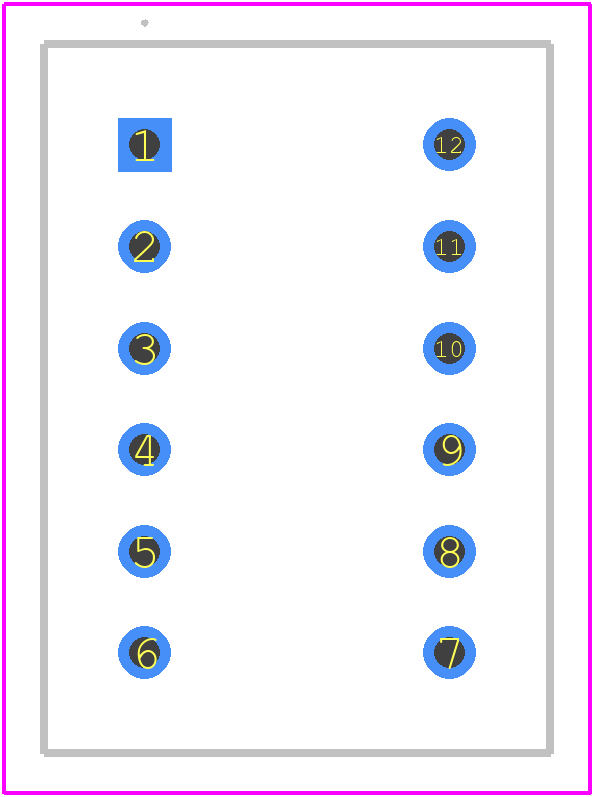

Use the download button to access the LTP-747KR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTP-7,
or try a keyword search, such as LED Displays
