LTP8803-1AIPV#PBF - Analog Devices

Description: High Efficiency at High Frequency Up to 91.8% Efficiency at 600kHz, 54VIN to 1.2VOUT PMBus-Compliant I2C Serial Interface Monitor Voltage, Current, Temperature, and Faults Internal EEPROM Fault Log Record Digitally Programmable Control Loop Program Voltage, Current Limits, Soft-Start/Soft-Stop, Frequency, Synchronization and Phasing, Power-Good, Warnings and Faults Wide Input Voltage Range: 45V to 65V Output Voltage Range: 0.5V to 1.5V Optimized for 45V to 65VIN to 1.2VOUT ±0.5% Maximum DC Output Err

Download LTP8803-1AIPV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

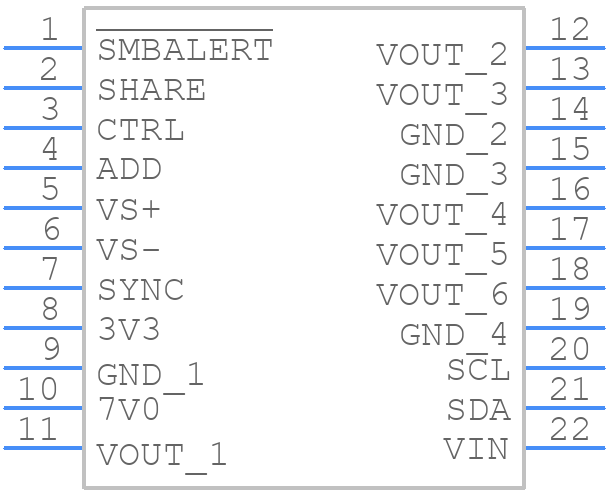

LTP8803-1AIPV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

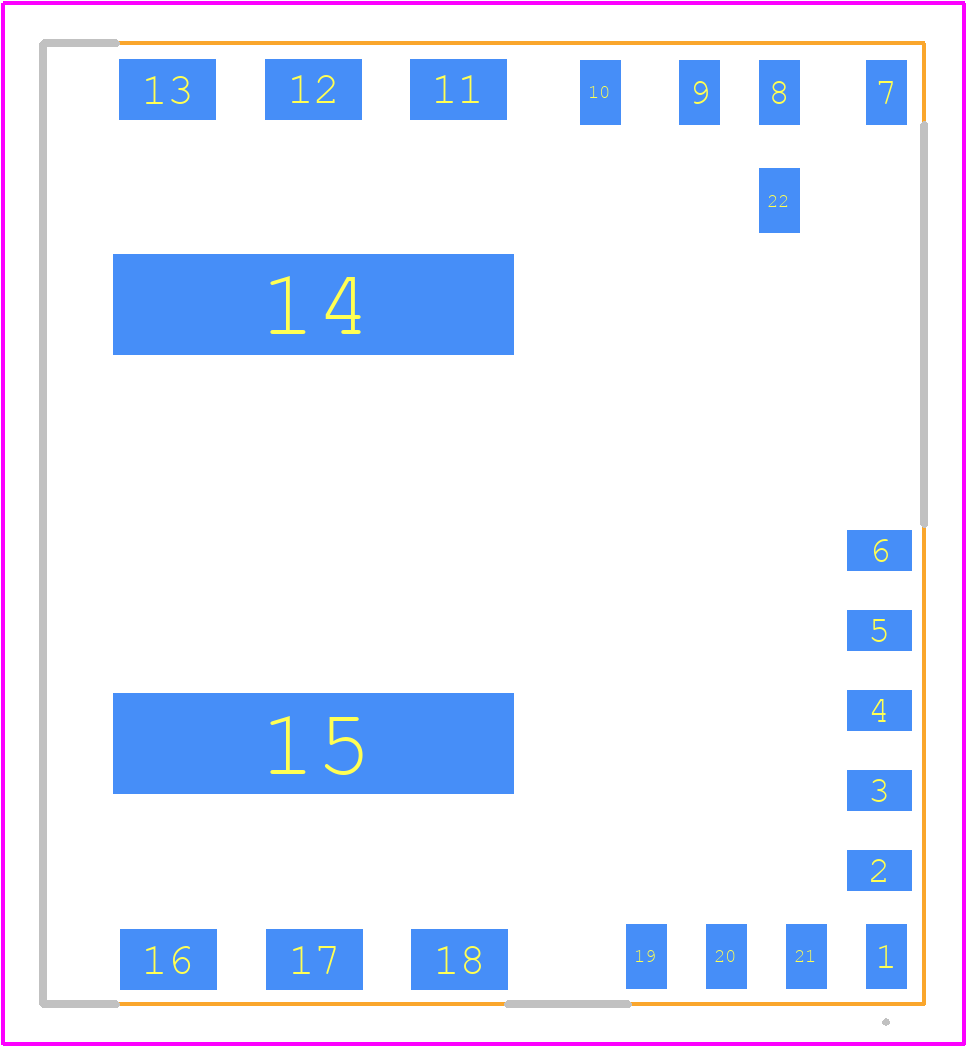

LTP8803-1AIPV#PBF - Analog Devices PCB footprint - Other - Other - LTP8803-1AIPV#PBF-1
click to zoom
3D Models
LTP8803-1AIPV#PBF - Analog Devices - 3D model - Other - LTP8803-1AIPV#PBF-1
click to zoom

LTP8803-1AIPV#PBF Details

  • Manufacturer Part Number:

    LTP8803-1AIPV#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PRINTEDCIRCUIT ASSEMBLY

  • Package Description:

    PCA-22

  • Pin Count:

    22

  • Manufacturer Package Code:

    PRINTEDCIRCUIT ASSEMBLY

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    45 V

  • Input Voltage-Nom:

    54 V

  • JESD-30 Code:

    R-XXMA-N22

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    200 A

  • Output Voltage-Max:

    1.5 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,22LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    22.5 mm

  • Supply Current-Max (Isup):

    3.87 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    618 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Width:

    22 mm

LTP8803-1AIPV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTP8803-1AIPV involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the LTP8803-1AIPV, it is recommended to follow a power-up sequence of EN, then VIN, and a power-down sequence of VIN, then EN. Additionally, the input voltage should be ramped up and down slowly to prevent damage to the device.
  • The LTP8803-1AIPV has an operating temperature range of -40°C to +125°C, but the device's performance may degrade at temperatures above 85°C. It is recommended to operate the device within the -40°C to +85°C range for optimal performance.
  • To troubleshoot issues with the LTP8803-1AIPV, start by checking the input voltage, output voltage, and enable pin voltage using an oscilloscope or multimeter. Check for proper PCB layout, decoupling, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The LTP8803-1AIPV is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. However, it is recommended to consult with Analog Devices Inc. for specific guidance and to ensure that the device meets the required standards and regulations.
