Description:Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.1V 20mA 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) 18-DIP (0.600", 15.24mm), 13 Leads
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces away from the device's thermal pad and using a thermal relief pattern can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermal interface material (TIM) between the device and heat sink, and ensuring good airflow. Additionally, derating the device's power consumption and operating frequency can also help to reduce thermal stress.
The recommended soldering conditions for LTS-3401LP are: peak temperature of 260°C, soldering time of 10 seconds, and a temperature ramp rate of 3°C/s. It's also essential to use a solder with a melting point above 217°C to ensure reliable joints.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet for specific troubleshooting guidelines or contact Lite-On Semiconductor Corporation's technical support.
The LTS-3401LP has built-in ESD protection, but it's still essential to follow proper handling precautions to prevent damage. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Store the device in an anti-static bag or container, and avoid exposing it to high humidity or temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-3401LP Overview

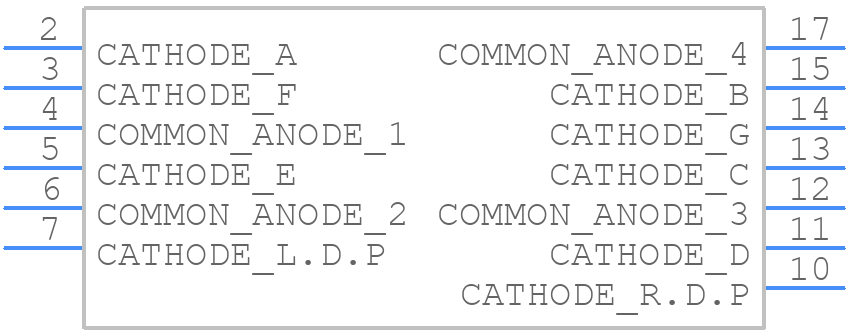

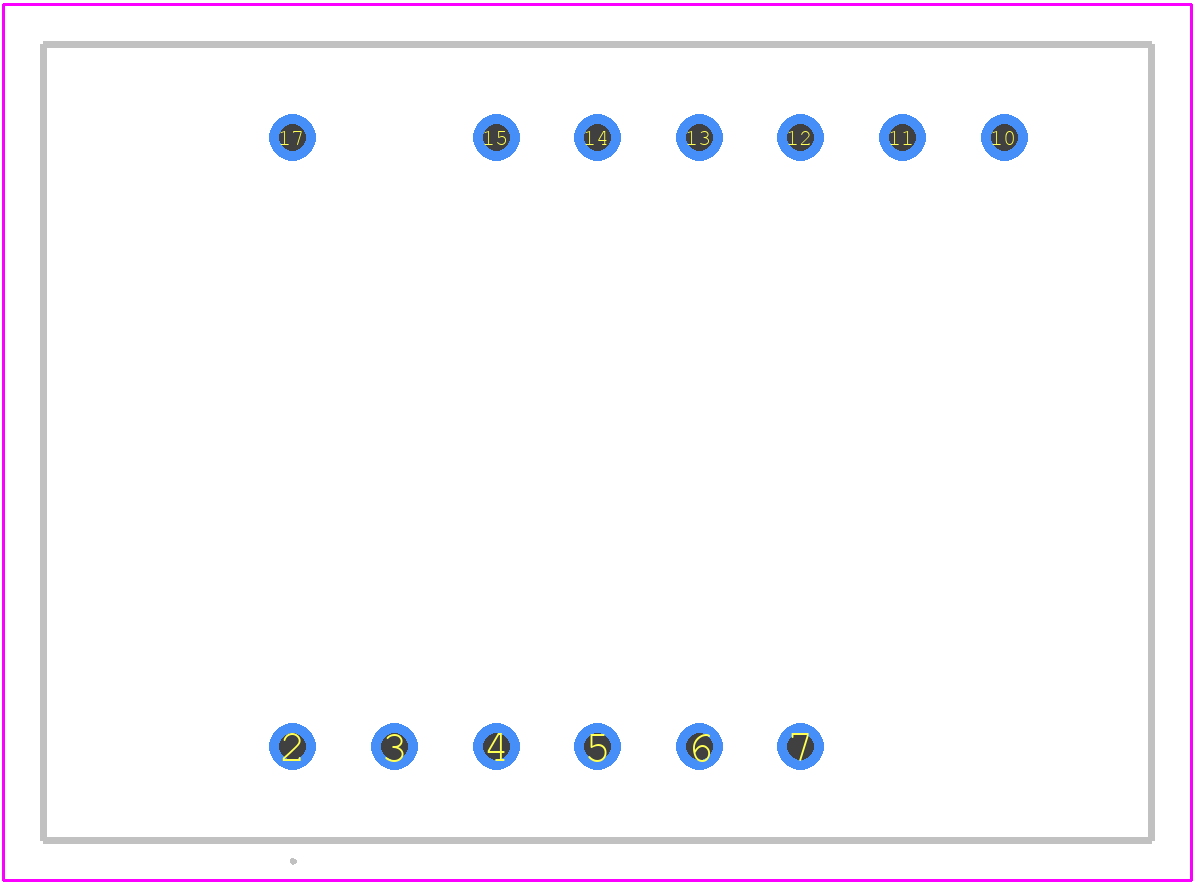

Use the download button to access the LTS-3401LP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-3,
or try a keyword search, such as LED Displays
