Description:Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.1V 20mA 0.551" H x 0.291" W x 0.332" D (14.00mm x 7.40mm x 8.44mm) 10-DIP (0.200", 5.08mm)
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces away from the device's thermal pad and using a thermal relief pattern can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and consider the device's power dissipation. Implementing a heat sink or a thermal management system can help to reduce the junction temperature. Additionally, using a thermally conductive adhesive or thermal interface material can improve heat transfer between the device and the heat sink.
The LTS-367G has built-in ESD protection, but it's still essential to follow proper handling precautions to prevent damage. Use an anti-static wrist strap or mat, and handle the device by the body or pins, avoiding direct contact with the die. Store the device in an anti-static bag or container, and avoid exposing it to high-voltage sources or electrostatic discharges.
The LTS-367G is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if it's necessary to operate in such conditions, consider applying a conformal coating to protect the device from moisture. Ensure the coating is compatible with the device's materials and follows the manufacturer's recommendations.
The recommended soldering profile for LTS-367G is a peak temperature of 260°C, with a dwell time of 10-30 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation. It's essential to follow the manufacturer's recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-367G Overview

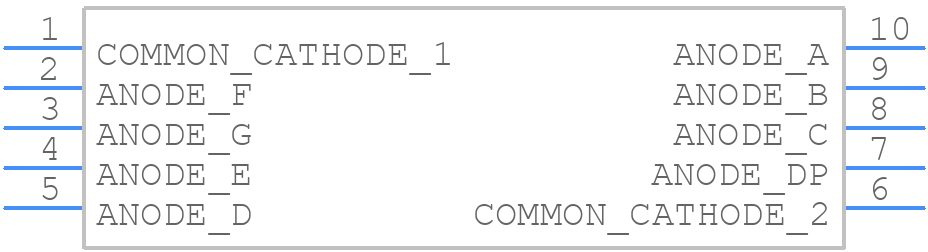

Use the download button to access the LTS-367G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-3,
or try a keyword search, such as LED Displays
