LTS-367HR - Lite-On

Description: LED Displays & Accessories 1-DIG Hi Eff Red CCRHD

Download LTS-367HR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

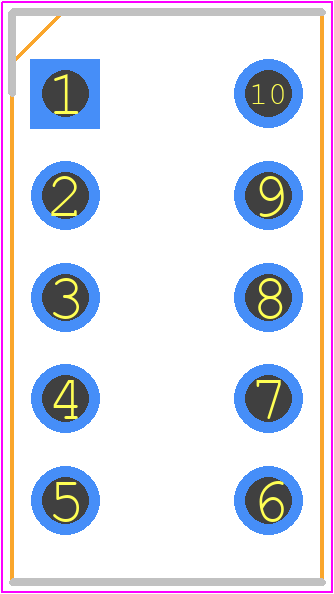

LTS-367HR - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTS-367HR
click to zoom

LTS-367HR Details

  • Manufacturer Part Number:

    LTS-367HR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    9.14 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.8 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

LTS-367HR Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the junction temperature (Tj) does not exceed 150°C. Use a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's thermal shutdown feature to prevent overheating.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
  • Use a TVS (transient voltage suppressor) diode or a zener diode to clamp voltage transients. Ensure that the device's input voltage does not exceed the maximum rating of 36V.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
