LTS-4301E - Lite-On

Description: Display Modules - LED Character and Numeric Orange-Red 7-Segment 1 Character Common Cathode 2V 20mA 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Download LTS-4301E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

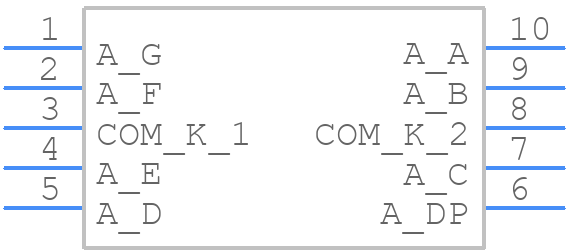

LTS-4301E - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTS-4301E - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)
click to zoom
3D Models
LTS-4301E - Lite-On - 3D model - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)
click to zoom

LTS-4301E Details

  • Manufacturer Part Number:

    LTS-4301E

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    5

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED ORANGE

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    630 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)
