LTS-4301JR - Lite-On

Description: Displays Module 1DIGIT 8LED Sup. Red CC 10-Pin DIP Module

Download LTS-4301JR Model

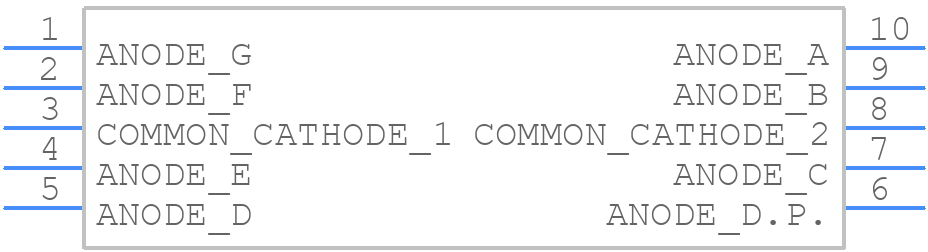

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTS-4301JR - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)
click to zoom
3D Models
LTS-4301JR - Lite-On  - 3D model - Dual-In-Line Sockets - 10-DIP (0.300", 7.62mm)
click to zoom

LTS-4301JR Details

  • Manufacturer Part Number:

    LTS-4301JR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    639 nm
