A good PCB layout for optimal thermal performance would involve placing the device near a thermal pad or a heat sink, ensuring good thermal conductivity. A 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
The LTS-4802BJR-H1 is a sensitive electronic component and requires proper ESD protection during handling and assembly. Use anti-static wrist straps, mats, or bags to prevent static electricity damage. Follow standard ESD handling procedures, such as grounding yourself before handling the device, and avoid touching the pins or components.
The LTS-4802BJR-H1 is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or safety-critical applications. For such applications, consider using industrial-grade or automotive-grade devices that are specifically designed for high-reliability and safety-critical systems.
Follow the recommended soldering and rework techniques outlined in the datasheet or the manufacturer's application notes. Use a soldering iron with a temperature range of 200°C to 250°C, and avoid applying excessive heat or force during soldering or rework operations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-4802BJR-H1 Overview

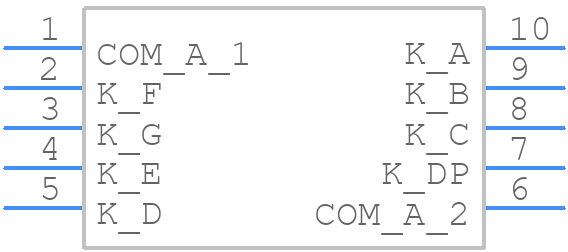

Use the download button to access the LTS-4802BJR-H1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-4,
or try a keyword search, such as LED Displays
