Description:Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.05V 20mA 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) 10-DIP (0.300", 7.62mm)
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material. Additionally, verify that the device is operated within the specified junction temperature range.
The recommended soldering conditions for the LTS-4802BJS-H1 are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering iron temperature of 350°C. It's also recommended to use a solder with a melting point above 217°C.
The LTS-4802BJS-H1 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If operation in humid environments is necessary, consider using a conformal coating or potting the device to protect it from moisture.
The recommended storage condition for the LTS-4802BJS-H1 is in a dry, cool place with a temperature range of -20°C to 40°C and relative humidity below 60%. Avoid storing the device in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-4802BJS-H1 Overview

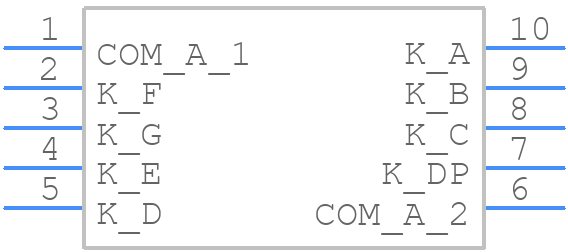

Use the download button to access the LTS-4802BJS-H1 schematic symbol, PCB footprint, and 3D model.
