- Part Number LTS-4812SKR-P
- Manufacturer Lite-On
- Pin Count 10
- Part Category Display
- Package Category Other
- Footprint Name Other - LTS-4812SKR-P-1
- Released Date Feb 27, 2019
- Last Modified Date May 19, 2026 10:57 AM UTC
- Pinout / Pin List Click Here (Member Only)
LTS-4812SKR-P Details
-
Manufacturer Part Number:
LTS-4812SKR-P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.20.00
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Lite-On Semiconductor Corporation
-
YTEOL:
6
-
Color:
SUPER RED
-
Color@Wavelength:
Orange-Red
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
-
Display Height:
10 mm
LTS-4812SKR-P Frequently Asked Questions (FAQs)
-
A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, with thermal vias connecting to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the PCB traces away from the device's thermal pad and using a thermal relief pattern can also improve thermal performance.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range specified in the datasheet. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation. It's also crucial to ensure good airflow around the device and to avoid overheating due to excessive power dissipation.
-
The recommended soldering conditions for the LTS-4812SKR-P are: peak temperature of 260°C, soldering time of 10 seconds, and a temperature ramp rate of 3°C/s. It's also essential to use a solder with a melting point above 217°C to ensure reliable joints.
-
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded. Additionally, consider using ESD-protective packaging and handling materials to prevent damage during shipping and storage.
-
The recommended storage conditions for the LTS-4812SKR-P are: temperature range of -40°C to 125°C, humidity of 60% or less, and protection from direct sunlight. It's also essential to store the devices in their original packaging or in a dry, clean environment to prevent damage.
Trust Checks
Expert Contribution
System Verified
Community Approved
LTS-4812SKR-P Overview

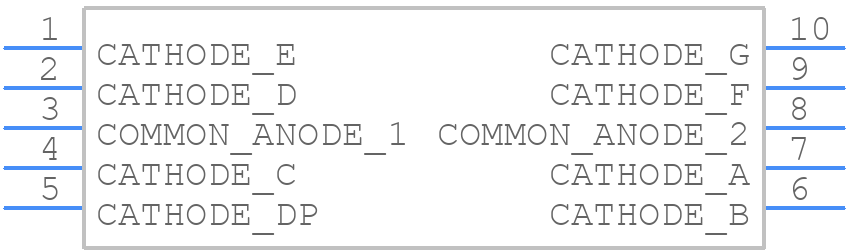

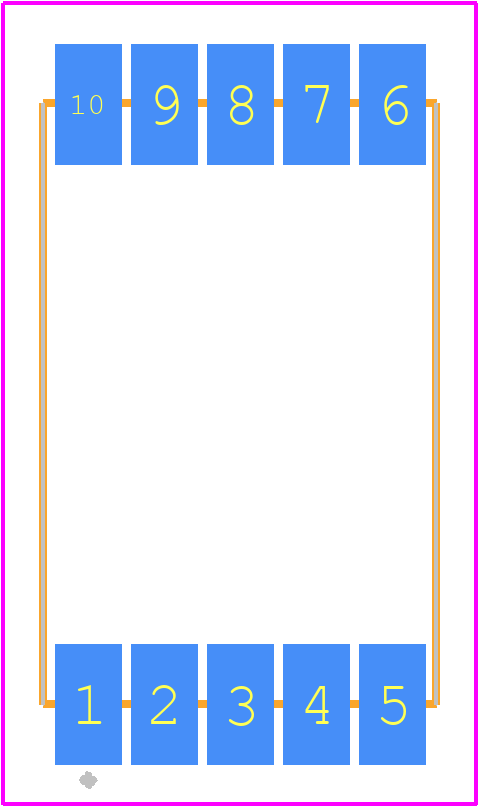

Use the download button to access the LTS-4812SKR-P schematic symbol, PCB footprint, and 3D model.
