LTS-4817SW-P Frequently Asked Questions (FAQs)

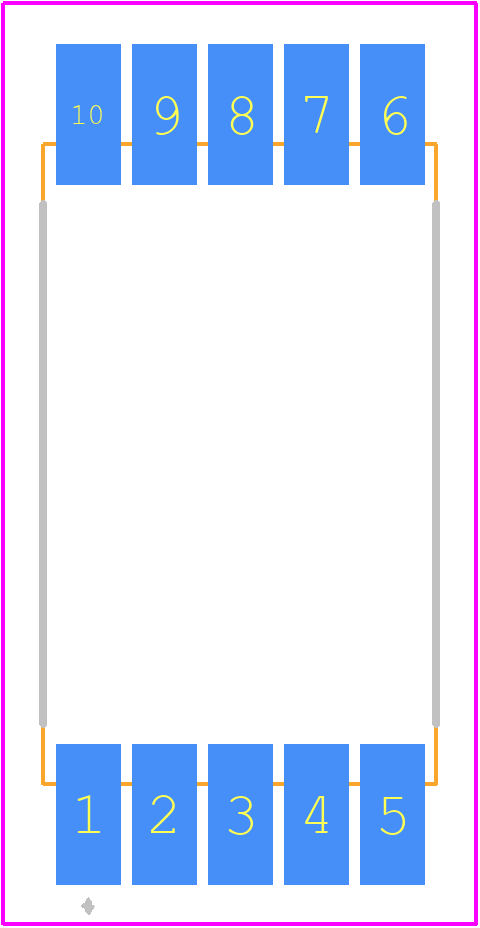

• What is the recommended PCB layout for optimal thermal performance?
  A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
• How do I ensure reliable operation in high-temperature environments?
  Ensure that the device is operated within the recommended temperature range (−40°C to +125°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
• What is the recommended soldering profile for LTS-4817SW-P?
  A reflow soldering profile with a peak temperature of 240°C to 250°C and a dwell time of 20-30 seconds is recommended. Avoid exceeding 260°C to prevent damage to the device.
• How do I handle ESD protection during handling and assembly?
  Use ESD-safe materials and handling procedures to prevent damage. Ground yourself and the device before handling. Use an ESD wrist strap or mat, and store the device in an ESD-safe container when not in use.
• What are the recommended storage conditions for LTS-4817SW-P?
  Store the device in a dry, cool place (−20°C to +30°C) with relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
