A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The device should be placed near a thermal pad or a heat sink to ensure good thermal conductivity.
The device requires a stable input voltage of 5V ± 10% and a bias current of 10mA to 50mA. Ensure the input voltage is filtered to minimize noise and ripple.
The maximum allowable junction temperature is 150°C. Operating the device above this temperature may reduce its lifespan or cause permanent damage.
The device is not designed for high-humidity environments. If operation in humid environments is necessary, consider using a moisture-resistant coating or conformal coating to protect the device.
Check the input voltage, bias current, and PCB layout for any issues. Verify that the device is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-5001AWC Overview

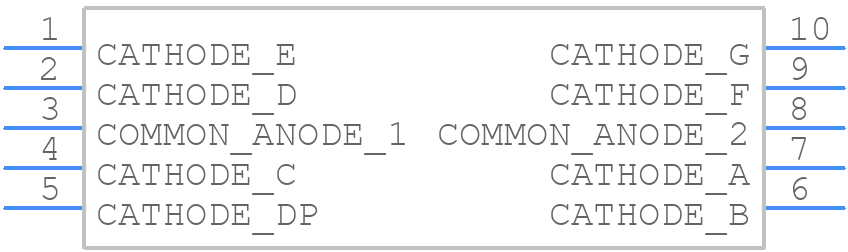

Use the download button to access the LTS-5001AWC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-5,
or try a keyword search, such as LED Displays
