LTS-546AJD - Lite-On

Description: Displays Module 1DIGIT 8LED Hyper Red CA 10-Pin DIP Module

Download LTS-546AJD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

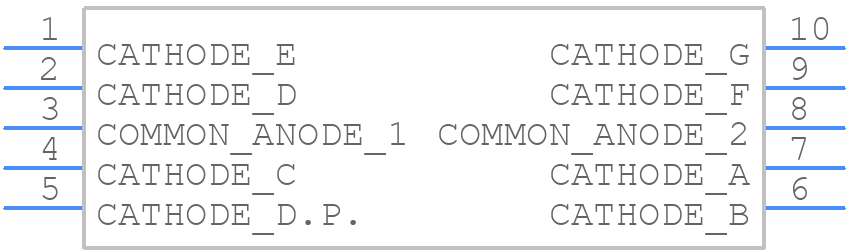

Symbol
LTS-546AJD - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTS-546AJD - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)
click to zoom

LTS-546AJD Details

  • Manufacturer Part Number:

    LTS-546AJD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13.2 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

LTS-546AJD Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTS-546AJD is -40°C to 85°C.
  • To ensure reliability in high-humidity environments, it is recommended to follow proper storage and handling procedures, and to use conformal coating or potting to protect the device from moisture.
  • The maximum allowable voltage for the LTS-546AJD is 5.5V, exceeding which may cause permanent damage to the device.
  • Yes, the LTS-546AJD is suitable for high-frequency applications up to 100 MHz, but it's recommended to follow proper PCB design and layout guidelines to minimize signal degradation and electromagnetic interference.
  • To troubleshoot issues with the LTS-546AJD, check for proper power supply, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signal and identify the root cause of the issue.
