LTS-546AWC - Lite-On

Description: Display: LED; 7-segment; 13.2mm; No.char: 1; red; 0.8mcd; anode

Download LTS-546AWC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

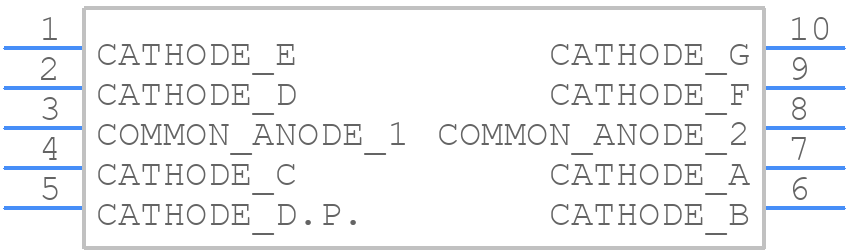

Symbol
LTS-546AWC - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTS-546AWC - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP
click to zoom
3D Models
LTS-546AWC - Lite-On - 3D model - Dual-In-Line Sockets - 10-DIP
click to zoom

LTS-546AWC Details

  • Manufacturer Part Number:

    LTS-546AWC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

  • Terminal Finish:

    TIN/LEAD (SN/PB)

LTS-546AWC Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTS-546AWC is -40°C to 85°C.
  • To ensure reliability in high-humidity environments, it is recommended to use a conformal coating or potting compound to protect the device from moisture.
  • The maximum forward current rating for LTS-546AWC is 30mA.
  • Yes, LTS-546AWC is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
  • It is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTS-546AWC Overview

Use the download button to access the LTS-546AWC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-5, or try a keyword search, such as LED Displays
