Description:Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.520" H x 0.488" W x 0.276" D (17.55mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)
The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring a minimum of 1mm clearance around the package for airflow. Additionally, it is recommended to use a thermal via array under the package to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, use a heat sink or thermal management system, and ensure good airflow around the device. Additionally, it is recommended to use a thermistor or temperature sensor to monitor the device temperature and take corrective action if necessary.
The maximum allowable voltage for the input pins is 5.5V, which is the absolute maximum rating. However, it is recommended to operate the device within the recommended operating conditions specified in the datasheet to ensure reliable operation and prevent damage to the device.
To handle ESD protection for the device, it is recommended to follow proper ESD handling procedures during assembly and testing, use ESD-protective packaging and materials, and implement ESD protection circuits or devices on the PCB. Additionally, it is recommended to use a TVS diode or other ESD protection device on the input pins to protect against electrostatic discharge.
The recommended storage condition for the device is in a dry, cool place with a temperature range of -40°C to 125°C and humidity below 60%. It is also recommended to store the device in its original packaging or in a sealed bag to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTS-547AHR Overview

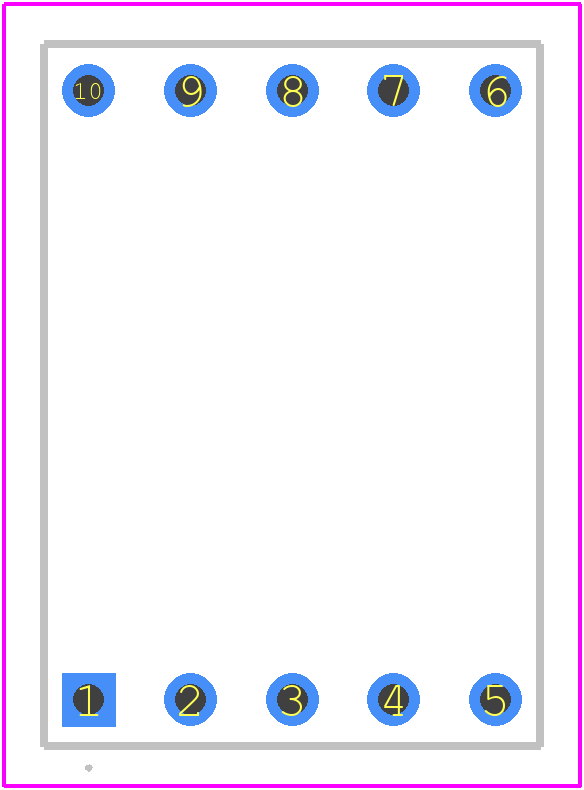

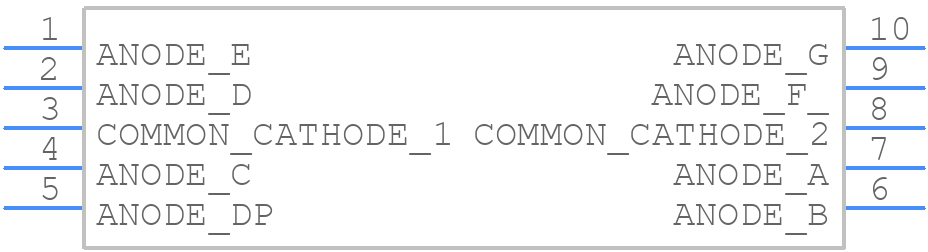

Use the download button to access the LTS-547AHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTS-5,
or try a keyword search, such as LED Displays
