Technical Content
Part Image

LTST-E683RGBW - Lite-On

Description: Standard LEDs - SMD SMD LED Red/Grn/Blue 150/625/250 mcd

Download LTST-E683RGBW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

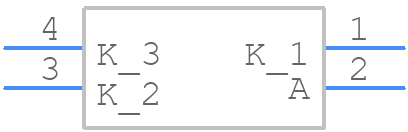

Symbol
LTST-E683RGBW - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTST-E683RGBW - Lite-On PCB footprint - Other - Other - LTST-E683RGBW-2
click to zoom
3D Models
LTST-E683RGBW - Lite-On - 3D model - Other - LTST-E683RGBW-2
click to zoom

LTST-E683RGBW Details

  • Manufacturer Part Number:

    LTST-E683RGBW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    COMMON ANODE, 3 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e3

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    147.5/627.5/247.5 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    1.8 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    639/518/468 nm

  • Shape:

    ROUND

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Tin (Sn)

  • Viewing Angle:

    120 deg

LTST-E683RGBW Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LTST-E683RGBW is -20°C to 30°C, with a relative humidity of 60% or less.
  • While LTST-E683RGBW is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from moisture and extreme temperatures.
  • The maximum forward current for LTST-E683RGBW is 30mA per channel (R, G, B, and W). Exceeding this current may reduce the LED's lifespan or cause damage.
  • To ensure color consistency, it's recommended to use LEDs from the same production batch and to follow the manufacturer's binning and sorting guidelines.
  • LTST-E683RGBW is rated for operation up to 85°C. However, high temperatures can affect the LED's performance and lifespan. It's recommended to derate the current and voltage at high temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTST-E683RGBW Overview

Use the download button to access the LTST-E683RGBW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTST-, or try a keyword search, such as Visible LEDs
