LTST-S06WGEBD - Lite-On

Description: Standard LEDs - SMD SMD2 PLCC LTST-S06WGEBD

Download LTST-S06WGEBD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTST-S06WGEBD model

Email notifications will be applied after download.

Send part feedback

Symbol

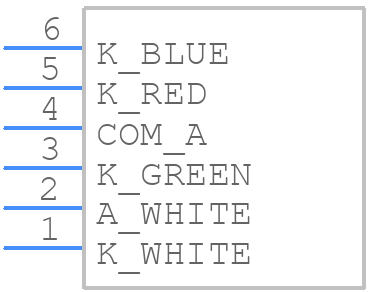

LTST-S06WGEBD - Lite-On - PCB symbol

PCB Footprints

LTST-S06WGEBD - Lite-On PCB footprint - Other - Other - LTST-S06WGEBD-4

3D Models

LTST-S06WGEBD - Lite-On - 3D model - Other - LTST-S06WGEBD-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTST-S06WGEBD
Part Number LTST-S06WGEBD
Manufacturer Lite-On
Pin Count 6
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - LTST-S06WGEBD-4
Released Date Nov 22, 2022
Last Modified Date Jul 1, 2024 6:31 AM UTC
Pinout / Pin List Click Here (Member Only)

LTST-S06WGEBD Details

Manufacturer Part Number:
LTST-S06WGEBD
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Factory Lead Time:
18 Weeks
Manufacturer:
Lite-On Semiconductor Corporation
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
WHITE/RED/GREEN/BLUE
Configuration:
COMPLEX
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Lens Type:
YELLOW/WHITE DIFFUSED
Luminous Intensity-Nom:
2190.0/1075.0/2025.0/430.0 mcd
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
MULTIPLE COLOR LED
Overall Height:
1 mm
Packing Method:
TR, 7 INCH
Shape:
RECTANGULAR
Surface Mount:
YES
Viewing Angle:
120 deg

LTST-S06WGEBD Frequently Asked Questions (FAQs)

The recommended storage temperature range for LTST-S06WGEBD is -40°C to 100°C.
Yes, the LTST-S06WGEBD is compatible with lead-free soldering processes.
The maximum forward current rating for the LTST-S06WGEBD is 30mA.
Yes, the LTST-S06WGEBD is designed to operate in high-humidity environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
Yes, the LTST-S06WGEBD is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
