LTV-0601 - Lite-On

Description: High Speed Optocouplers SO8 10MBD High Speed Optocoupler

Download LTV-0601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

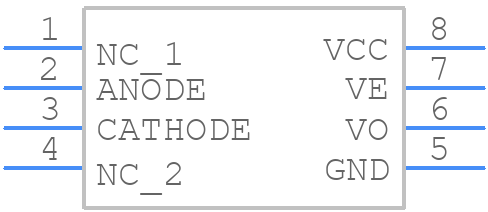

LTV-0601 - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTV-0601 - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
LTV-0601 - Lite-On - 3D model - Small Outline Packages - SO8
click to zoom

LTV-0601 Details

  • Manufacturer Part Number:

    LTV-0601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Supply Voltage-Min:

    2.7 V

LTV-0601 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTV-0601 is -40°C to 125°C.
  • To ensure reliability, it's recommended to derate the power dissipation of the LTV-0601 at high temperatures. A general guideline is to derate by 1% per degree Celsius above 25°C.
  • The maximum allowable voltage for the LTV-0601 is 6.5V. Exceeding this voltage may cause damage to the device.
  • It's recommended to handle the LTV-0601 with ESD-protective equipment and follow proper ESD-handling procedures to prevent damage to the device.
  • The recommended storage condition for the LTV-0601 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-0601 Overview

Use the download button to access the LTV-0601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-0, or try a keyword search, such as Optocoupler
