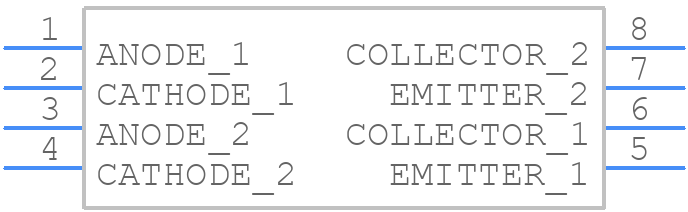

LTV-206 footprint, schematic symbol and 3D model by Lite-On

Symbol

PCB Footprints

3D Models

LTV-206 Details

The recommended operating temperature range for the LTV-206 is -40°C to 85°C.
To ensure reliability in high-humidity environments, it is recommended to use a moisture-resistant coating or conformal coating on the LTV-206, and to follow proper storage and handling procedures.
The maximum allowable voltage for the LTV-206 is 6.3V, exceeding which may cause damage to the device.
To handle ESD protection for the LTV-206, it is recommended to use an ESD-protected workstation, wear an ESD strap, and use ESD-protected packaging and handling procedures.
The recommended soldering temperature profile for the LTV-206 is a peak temperature of 260°C, with a dwell time of 10-30 seconds.

Community Provided

System Verified

Community Approved

Use the download button to access the LTV-206 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-2, or try a keyword search, such as Optocoupler
