LTV-217-C-G footprint, schematic symbol and 3D model by Lite-On

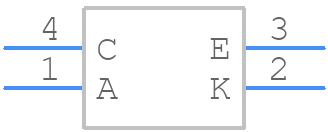

Symbol

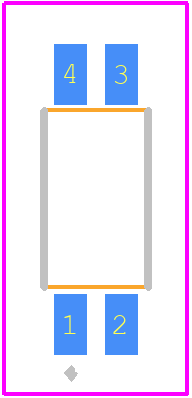

PCB Footprints

3D Models

LTV-217-C-G Details

The recommended operating temperature range for LTV-217-C-G is -40°C to 100°C.
To ensure reliability, it's recommended to derate the power dissipation of the LTV-217-C-G at high temperatures. A general guideline is to reduce the power dissipation by 1% for every 1°C above 25°C.
The maximum allowable voltage for the LTV-217-C-G is 20V. Exceeding this voltage may damage the device.
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the LTV-217-C-G with an ESD wrist strap or mat, and to ensure that the device is stored in an ESD-protected environment.
The recommended soldering temperature profile for the LTV-217-C-G is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
