LTV-247 footprint, schematic symbol and 3D model by Lite-On

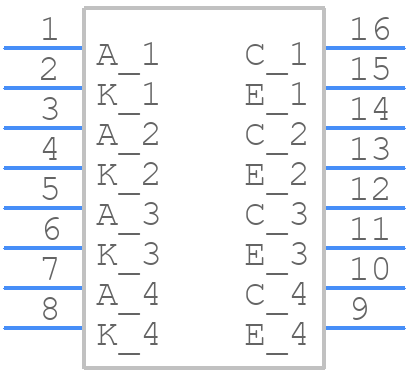

Symbol

PCB Footprints

3D Models

LTV-247 Details

The recommended operating temperature range for LTV-247 is -40°C to 125°C.
To ensure reliability, it is recommended to derate the power dissipation of the LTV-247 at high temperatures. A derating curve can be found in the datasheet or application notes.
The maximum allowable voltage for the LTV-247 is 5.5V. Exceeding this voltage may cause damage to the device.
The LTV-247 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
The recommended storage condition for LTV-247 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a sealed bag with desiccant.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LTV-247 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-2, or try a keyword search, such as Optocoupler
