Part Image

LTV-3120S - Lite-On

Description: 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD 1.37V,-40°C ~ 105°C ,8-SMD, Gull Wing

Download LTV-3120S Model

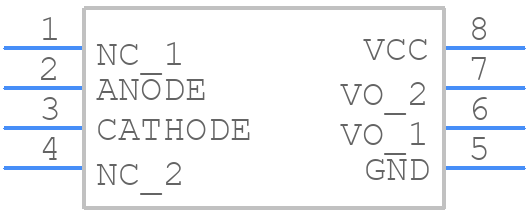

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTV-3120S - Lite-On PCB footprint - Other - Other - 8-SMD, Gull Wing
click to zoom
3D Models
LTV-3120S - Lite-On  - 3D model - Other - 8-SMD, Gull Wing
click to zoom

LTV-3120S Details

  • Manufacturer Part Number:

    LTV-3120S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    3.5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

LTV-3120S Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking, and consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The recommended input capacitor value and type for optimal performance is a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 25V or higher. This helps to filter out noise and ripple on the input voltage and ensure stable operation.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is operating within its specified temperature range and that the output capacitor is of the recommended type and value.
  • The maximum allowed voltage on the enable pin is 6V, which is the maximum rating for the logic input. Exceeding this voltage may damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-3120S Overview

Use the download button to access the LTV-3120S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-3, or try a keyword search, such as Optocoupler
