LTV-817S-TA1-C - Lite-On

Description: Optocoupler Transistor Output, 35V, SMD4 Lite-On LTV-817S-TA1-C DC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin DIP

Download LTV-817S-TA1-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

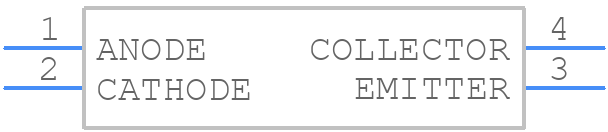

LTV-817S-TA1-C - Lite-On - PCB symbol
click to zoom
PCB Footprints

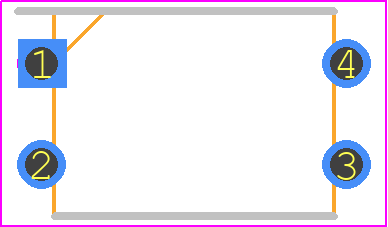

LTV-817S-TA1-C - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-816
click to zoom
3D Models
LTV-817S-TA1-C - Lite-On - 3D model - Dual-In-Line Packages - LTV-816
click to zoom

LTV-817S-TA1-C Details

  • Manufacturer Part Number:

    LTV-817S-TA1-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SURFACE MOUNT, ROHS COMPLIANT, DIP-4

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    200%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.2 W

  • Response Time-Max:

    0.000018 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Tin (Sn)

LTV-817S-TA1-C Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTV-817S-TA1-C is -40°C to 85°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The maximum forward current that the LTV-817S-TA1-C can handle is 1A, as specified in the datasheet.
  • To protect the LTV-817S-TA1-C from ESD, it is recommended to handle the device in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • Yes, the LTV-817S-TA1-C can be used in a switching power supply application, but it is recommended to ensure that the device is operated within its specified maximum ratings and that proper thermal management is implemented.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-817S-TA1-C Overview

Use the download button to access the LTV-817S-TA1-C schematic symbol, PCB footprint, and 3D model.
