LTV-825S - Lite-On

Description: Optoisolator Darlington Output 5000Vrms 2 Channel 8-SMD

Download LTV-825S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

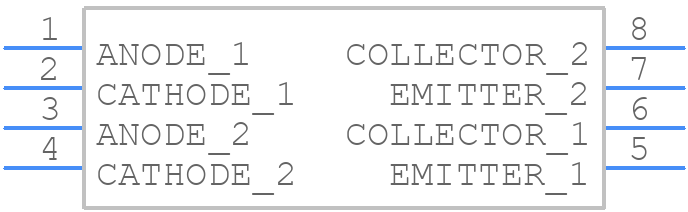

LTV-825S - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTV-825S - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - LTV-825
click to zoom
3D Models
LTV-825S - Lite-On - 3D model - Small Outline Packages - LTV-825
click to zoom

LTV-825S Details

  • Manufacturer Part Number:

    LTV-825S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    600%

  • Current Transfer Ratio-Nom:

    600%

  • Dark Current-Max:

    1000 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.08 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.2 W

  • Surface Mount:

    YES
