LTV-826S - Lite-On

Description: Transistor Output Optocouplers Optocplr Phototrans 2-CHNL

Download LTV-826S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

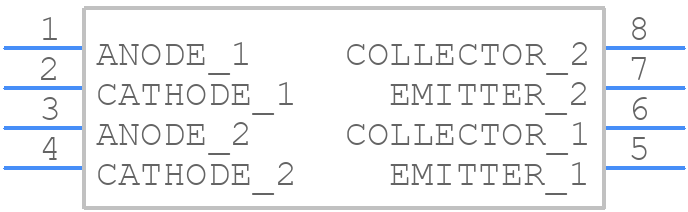

Symbol
LTV-826S - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTV-826S - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-824
click to zoom
3D Models
LTV-826S - Lite-On - 3D model - Dual-In-Line Packages - LTV-824
click to zoom

LTV-826S Details

  • Manufacturer Part Number:

    LTV-826S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

LTV-826S Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowable voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation.
  • Yes, but ensure the device is properly bypassed and decoupled, and the switching frequency is within the recommended range (100 kHz to 1 MHz).
  • Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and ensure good grounding and decoupling.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-826S Overview

Use the download button to access the LTV-826S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler
