LTV-827 - Lite-On

Description: Lite-On LTV-827 DC Input Transistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Download LTV-827 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

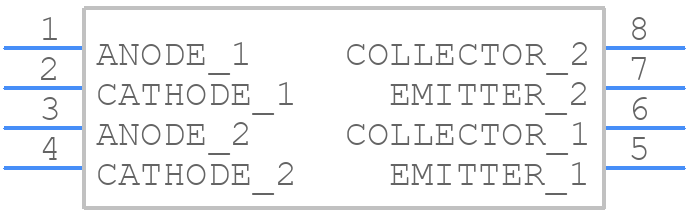

LTV-827 - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTV-827 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-827
click to zoom
3D Models
LTV-827 - Lite-On - 3D model - Dual-In-Line Packages - LTV-827
click to zoom

LTV-827 Details

  • Manufacturer Part Number:

    LTV-827

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Pure Tin (Sn)

LTV-827 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTV-827 is -40°C to 85°C.
  • To ensure reliability, it's recommended to derate the device's power dissipation according to the ambient temperature, and to use a heat sink if necessary.
  • The maximum allowable voltage for the LTV-827 is 5.5V, and it's recommended to operate the device within the recommended operating voltage range of 3.3V to 5V.
  • It's recommended to handle the LTV-827 with ESD-protective equipment and follow proper ESD handling procedures to prevent damage to the device.
  • The LTV-827 is not recommended for use in high-humidity environments. If operation in a humid environment is necessary, it's recommended to use a moisture-resistant coating or conformal coating to protect the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-827 Overview

Use the download button to access the LTV-827 schematic symbol, PCB footprint, and 3D model.
