LTV-844 - Lite-On

Description: Lite-On LTV-844 AC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download LTV-844 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

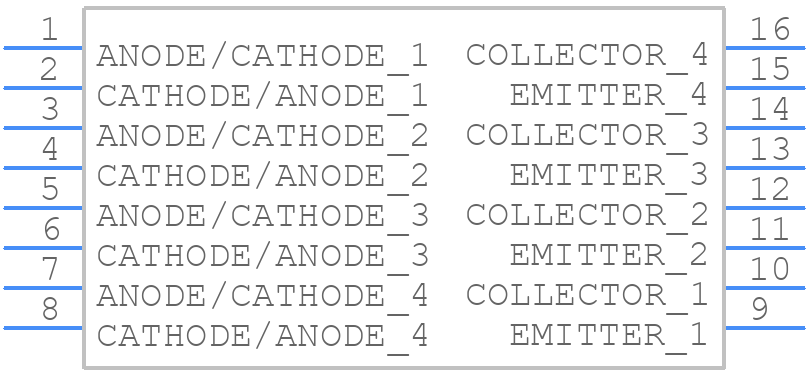

LTV-844 - Lite-On - PCB symbol
click to zoom
PCB Footprints

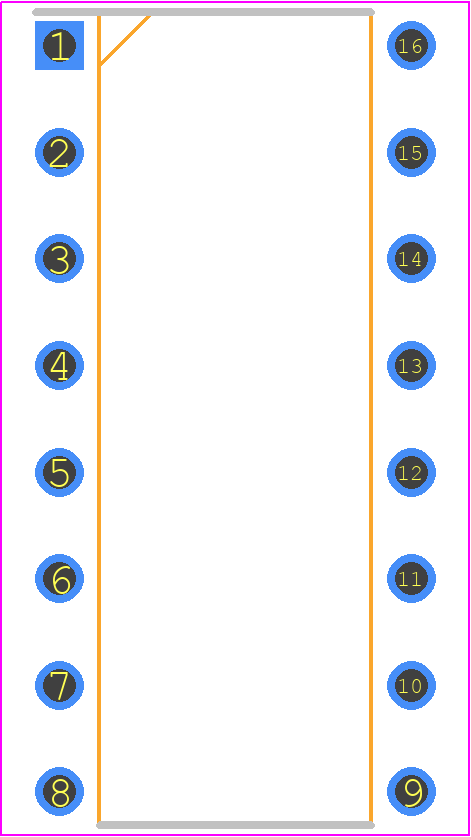

LTV-844 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-844
click to zoom
3D Models
LTV-844 - Lite-On - 3D model - Dual-In-Line Packages - LTV-844
click to zoom

LTV-844 Details

  • Manufacturer Part Number:

    LTV-844

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

LTV-844 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
  • Yes, the LTV-844 can be used in switching regulator applications, but ensure that the device is properly bypassed and decoupled to minimize noise and voltage spikes.
  • Check for proper power supply, decoupling, and grounding. Verify that the input signals are within the recommended voltage range. Use an oscilloscope to check for noise, ringing, or oscillations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-844 Overview

Use the download button to access the LTV-844 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler
