LTV-844S - Lite-On

Description: Lite-On LTV-844S AC Input Transistor Output Quad Optocoupler, Surface Mount, 16-Pin PDIP

Download LTV-844S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

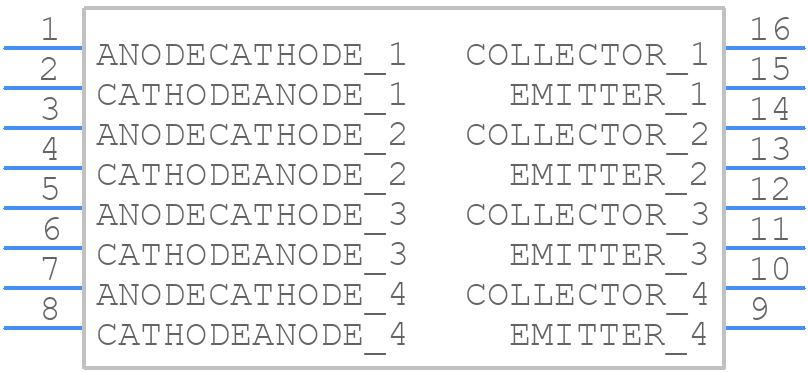

LTV-844S - Lite-On - PCB symbol
click to zoom
PCB Footprints

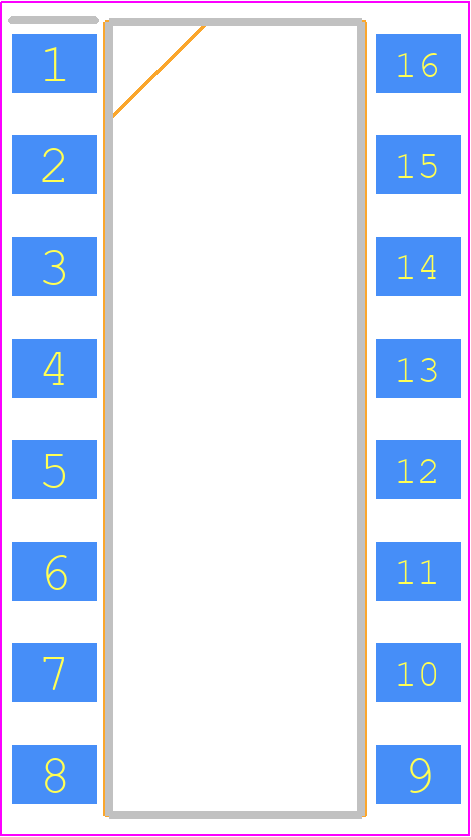

LTV-844S - Lite-On PCB footprint - Other - Other - LTV-846S
click to zoom
3D Models
LTV-844S - Lite-On - 3D model - Other - LTV-846S
click to zoom

LTV-844S Details

  • Manufacturer Part Number:

    LTV-844S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SURFACE MOUNT, DIP-16

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
