LTV-845 - Lite-On

Description: Transistor Output Optocouplers Optocoupler Photocoupler

Download LTV-845 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LTV-845 - Lite-On - PCB symbol
click to zoom
PCB Footprints

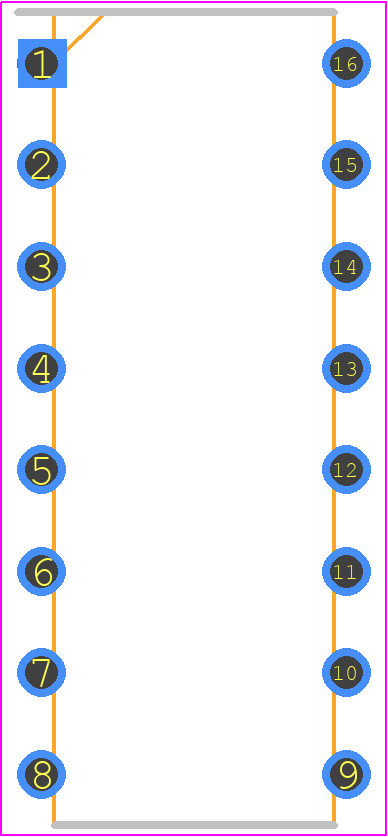

LTV-845 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-845
click to zoom
3D Models
LTV-845 - Lite-On - 3D model - Dual-In-Line Packages - LTV-845
click to zoom

LTV-845 Details

  • Manufacturer Part Number:

    LTV-845

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, DIP-16

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    600%

  • Current Transfer Ratio-Nom:

    600%

  • Dark Current-Max:

    1000 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.08 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.2 W

  • Surface Mount:

    NO

LTV-845 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LTV-845 is -40°C to 125°C.
  • To ensure reliability, it is recommended to derate the power dissipation of the LTV-845 at high temperatures. A derating curve can be found in the datasheet or application notes.
  • The maximum allowable voltage for the LTV-845 is 5.5V. Exceeding this voltage may cause damage to the device.
  • The LTV-845 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
  • The recommended storage condition for LTV-845 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a sealed bag to prevent moisture absorption.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTV-845 Overview

Use the download button to access the LTV-845 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler
