LTV-846 - Lite-On

Description: Lite-On LTV-846 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download LTV-846 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTV-846 model

Email notifications will be applied after download.

Send part feedback

Symbol

LTV-846 - Lite-On - PCB symbol

PCB Footprints

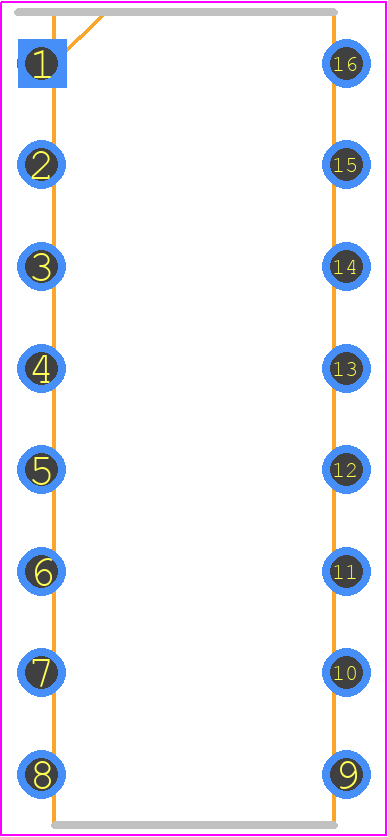

LTV-846 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-846-ren1

3D Models

LTV-846 - Lite-On - 3D model - Dual-In-Line Packages - LTV-846-ren1

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTV-846
Part Number LTV-846
Manufacturer Lite-On
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - LTV-846-ren1
Released Date Jul 13, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LTV-846 Details

Manufacturer Part Number:
LTV-846
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-16
Reach Compliance Code:
Compliant
HTS Code:
8541.40.80.00
Factory Lead Time:
8 Weeks
Manufacturer:
Lite-On Semiconductor Corporation
YTEOL:
6
Additional Feature:
UL APPROVED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min:
80 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Nom:
50%
Dark Current-Max:
100 nA
Forward Current-Max:
0.05 A
Isolation Voltage-Max:
5000 V
Number of Elements:
4
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-30 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER

LTV-846 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the LTV-846 is -40°C to 125°C.
To ensure proper biasing, connect the anode to a voltage source through a current-limiting resistor, and the cathode to ground through a bypass capacitor to filter out noise.
The maximum forward current rating for the LTV-846 is 30mA.
Yes, the LTV-846 can be used in switching power supply applications, but ensure proper snubber circuits are used to prevent voltage spikes and ringing.
Handle the LTV-846 with ESD-protective equipment, such as wrist straps and mats, to prevent damage from electrostatic discharge.

Trust Checks

Expert Contribution

System Verified

Community Approved

LTV-846 Overview

Use the download button to access the LTV-846 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler
