LTV-846S footprint, schematic symbol and 3D model by Lite-On

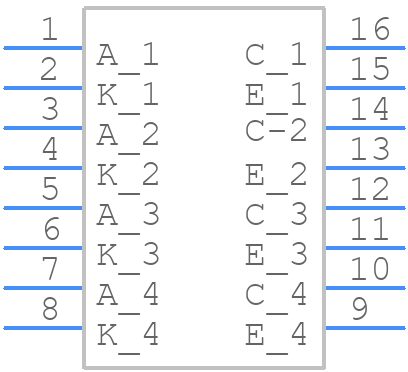

Symbol

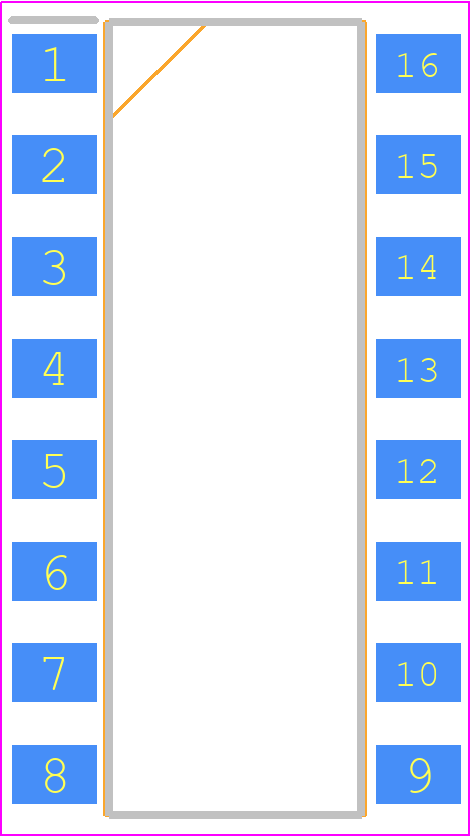

PCB Footprints

3D Models

LTV-846S Details

The recommended operating temperature range for the LTV-846S is -40°C to 125°C.
To ensure reliability, it is recommended to derate the power dissipation of the LTV-846S at high temperatures. A derating curve can be found in the datasheet or can be provided by the manufacturer upon request.
The maximum allowable voltage for the LTV-846S is 6V. Exceeding this voltage may cause damage to the device.
The LTV-846S has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device to prevent damage.
The recommended storage condition for the LTV-846S is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a similar anti-static package.

Community Provided

System Verified

Community Approved

Use the download button to access the LTV-846S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler
