LTW-008RGB2-PH1 - Lite-On

Description: Red, Green, Blue (RGB) 624nm Red, 525nm Green, 460nm Blue LED Indication - Discrete 2.2V Red, 3.4V Green, 3V Blue 2-SMD, No Lead

Download LTW-008RGB2-PH1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTW-008RGB2-PH1 model

Email notifications will be applied after download.

Send part feedback

Symbol

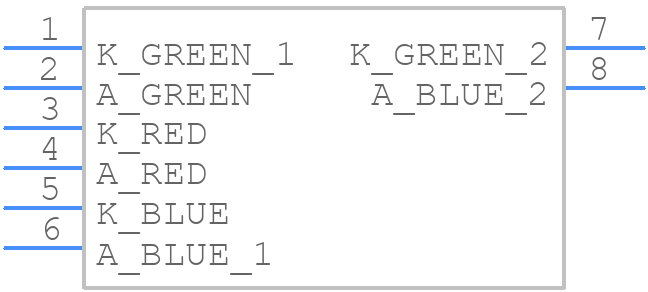

LTW-008RGB2-PH1 - Lite-On - PCB symbol

PCB Footprints

LTW-008RGB2-PH1 - Lite-On PCB footprint - Other - Other - 2-SMD, No Lead_2025

3D Models

LTW-008RGB2-PH1 - Lite-On - 3D model - Other - 2-SMD, No Lead_2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTW-008RGB2-PH1
Part Number LTW-008RGB2-PH1
Manufacturer Lite-On
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 2-SMD, No Lead_2025
Released Date Aug 14, 2025
Last Modified Date Aug 14, 2025 9:13 AM UTC
Pinout / Pin List Click Here (Member Only)

LTW-008RGB2-PH1 Details

Manufacturer Part Number:
LTW-008RGB2-PH1
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
Lite-On Semiconductor Corporation
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
RED/GREEN/BLUE
Configuration:
SEPARATE, 3 ELEMENTS
Forward Current-Max:
0.04 A
Forward Voltage-Max:
2.5 V
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
TRIPLE COLOR LED
Overall Height:
1.25 mm
Packing Method:
TR, 7 INCH
Peak Wavelength:
628/523/458 nm
Reverse Voltage-Max:
5 V
Shape:
RECTANGULAR
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Viewing Angle:
130 deg

LTW-008RGB2-PH1 Frequently Asked Questions (FAQs)

The recommended storage temperature range for LTW-008RGB2-PH1 is -40°C to 100°C.
Yes, LTW-008RGB2-PH1 is suitable for outdoor applications, but it's recommended to use a suitable encapsulant or coating to protect the LED from moisture and UV radiation.
The maximum forward current rating for LTW-008RGB2-PH1 is 30mA per channel (R, G, and B).
To ensure color consistency, it's recommended to use a binning process to sort the LEDs by color and brightness, and to use a consistent driving current and voltage.
Yes, LTW-008RGB2-PH1 can operate in high-temperature applications up to 85°C, but the luminous intensity and color may degrade at higher temperatures.

Trust Checks

Community Provided

System Verified

Community Approved

LTW-008RGB2-PH1 Overview

Use the download button to access the LTW-008RGB2-PH1 schematic symbol, PCB footprint, and 3D model.
