Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it's recommended to have a minimum of 2 oz copper thickness and to use thermal vias to connect the exposed pad to the ground plane.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
The recommended input capacitor value is 10 μF to 22 μF, with an X5R or X7R dielectric type. This ensures stable operation and minimizes the risk of oscillation.
Yes, the LV14540DDAR is designed to handle high currents up to 4 A. However, it's essential to ensure that the PCB layout and thermal management are designed to handle the high current and power dissipation. Additionally, consider using a heat sink or thermal interface material to improve thermal performance.
To troubleshoot oscillation or instability issues, check the input capacitor value and type, ensure the PCB layout is correct, and verify that the output capacitor is properly sized. Also, check for any noise or ripple on the input voltage and ensure that the device is operated within the recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV14540DDAR Overview

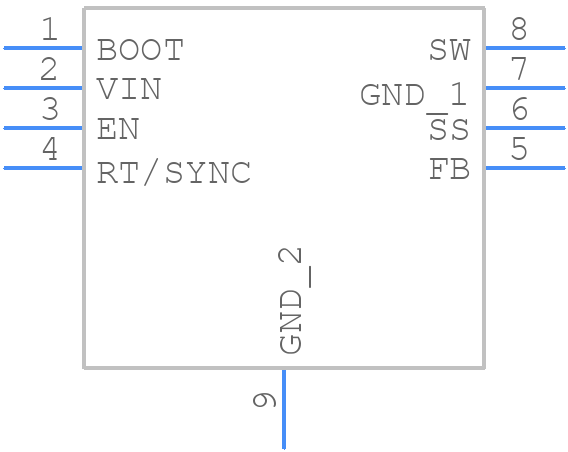

Use the download button to access the LV14540DDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV145,
or try a keyword search, such as Switching Regulator or Controllers
